G 1'' Male x 38S Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353

Notice: This product is discontinued

Discontinued

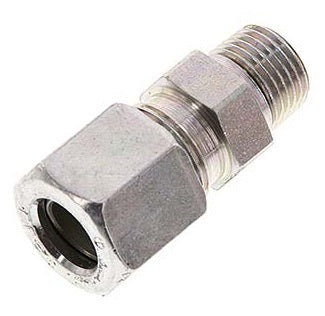

G 1'' Male x 38S Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2S-MC-EZ-100G-38-S
Brand: Tameson

This steel straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1 inch threads. Connection 2 is a 38 mm cutting ring. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 315 bar (4569 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1 inch threads. Connection 2 is a 38 mm cutting ring. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
