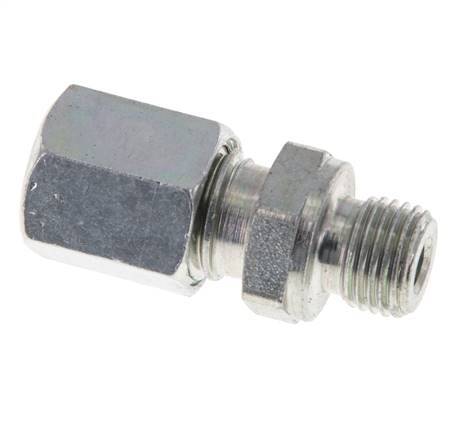

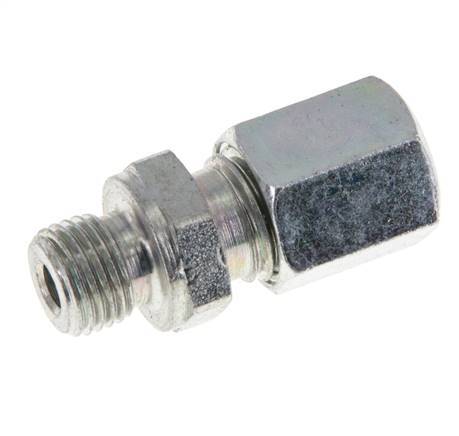

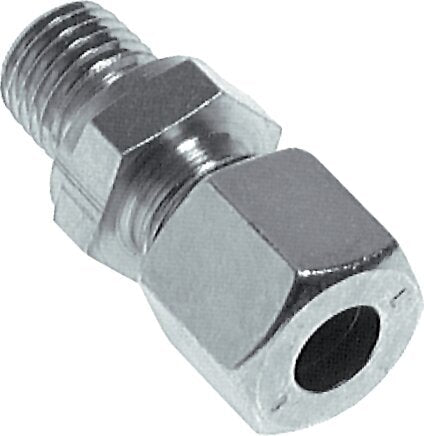

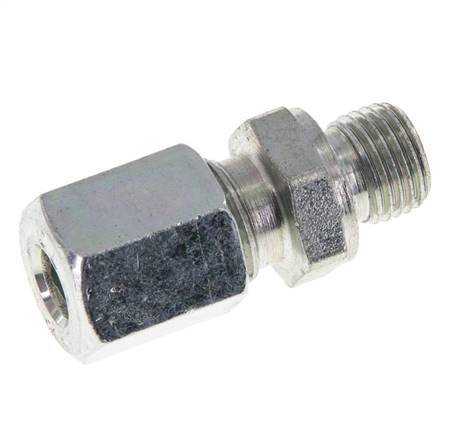

M10x1 Male x 6L Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353 [5 Pieces]
![M10x1 Male x 6L Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353 [5 Pieces]](http://tameson.co.uk/cdn/shop/files/2348-2406fl2s-mc-ez-m8-05-ll.385edfe5_4d7cf4f8-2e21-4cfb-8164-f6f6e3c2c2d7.jpg?v=1729712966)
![M10x1 Male x 6L Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353 [5 Pieces]](http://tameson.co.uk/cdn/shop/files/2348-2406fl2s-mc-ez-m8-05-ll.385edfe5_4d7cf4f8-2e21-4cfb-8164-f6f6e3c2c2d7.jpg?height=232&v=1729712966&width=232)
This steel straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 2 is a 6 mm cutting ring. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Contains 5 pieces
- Regular price
- £5.59
Description
This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 2 is a 6 mm cutting ring. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2S-MC series
The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
