G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353

G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
G 1'' Male x 25S Zinc plated Steel Straight Cutting Ring with FKM Seal 400 Bar DIN 2353
Image may vary slightly
See specifications for accurate information.
Reference: FL2S-MC-EZN-100G-25-S
Brand: Tameson

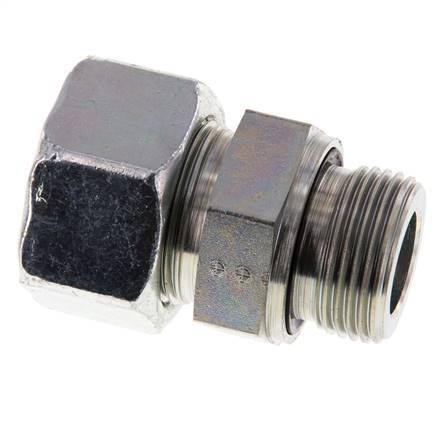

This steel straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1 inch threads. Connection 2 is a 25 mm cutting ring. The sealing is NBR. Suitable for temperatures from -35 °C to 100 °C (-31 °F to 212 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).

View all
Regular price
£8.99
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1 inch threads. Connection 2 is a 25 mm cutting ring. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of -35 °C to 100 °C (-31 °F to 212 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

  • Since it has a cutting ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
