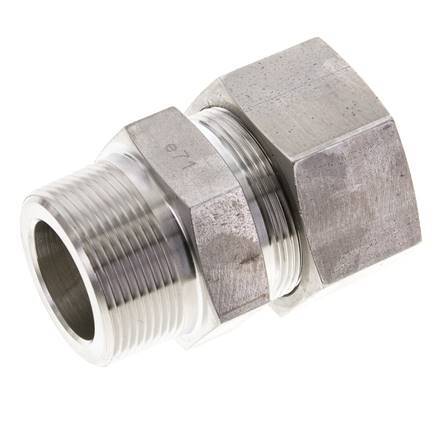

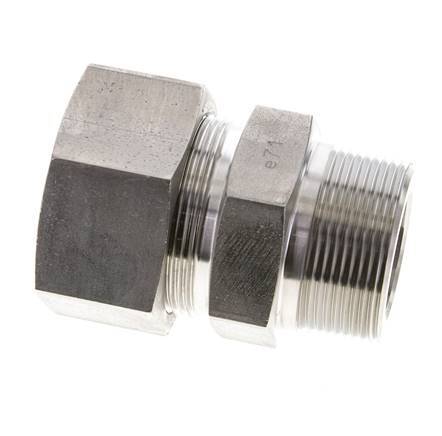

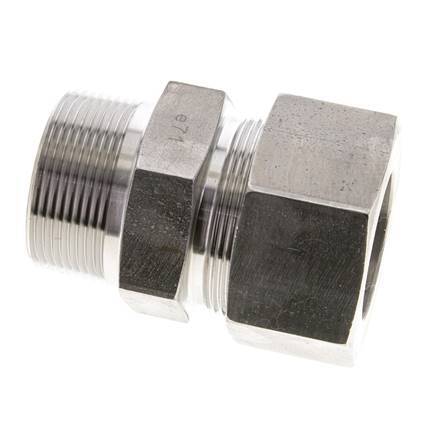

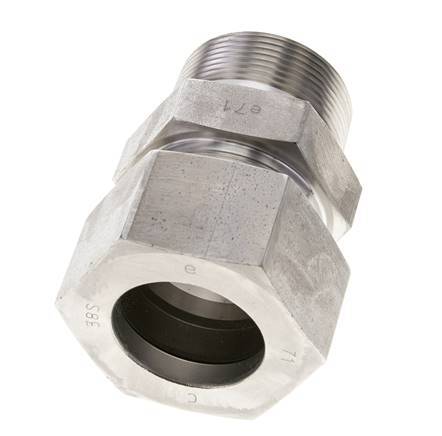

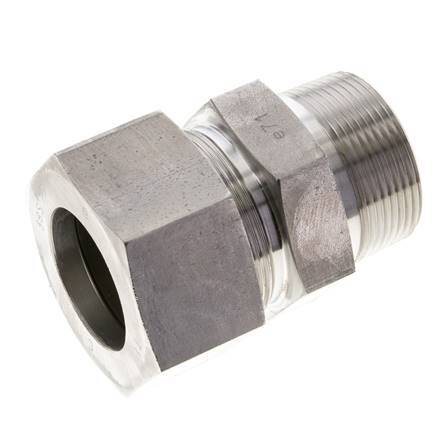

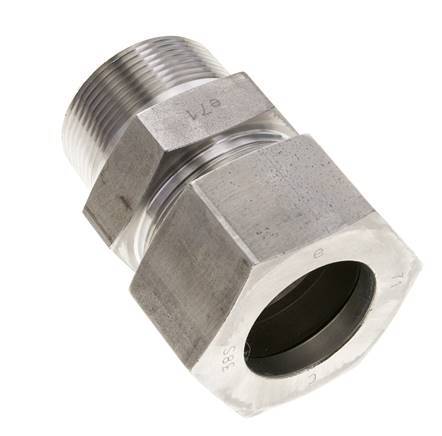

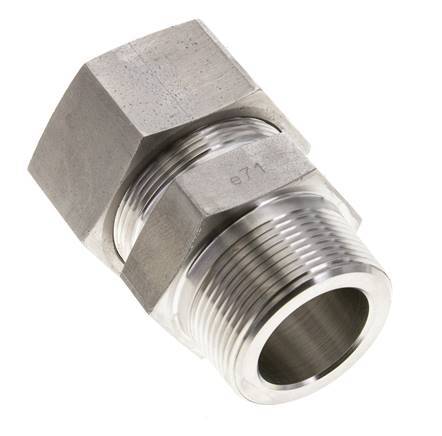

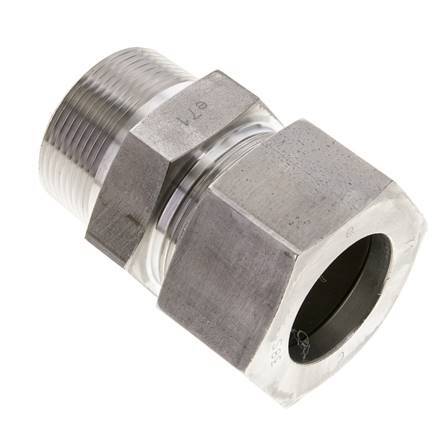

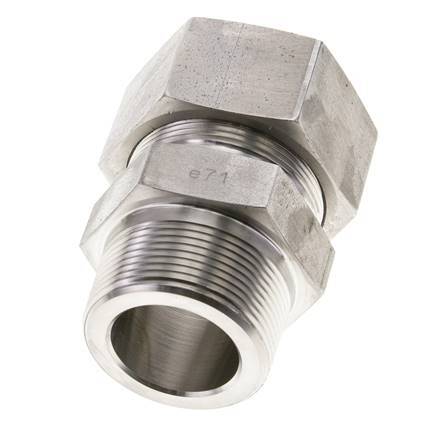

1 1/2'' NPT Male x 38S Stainless steel Straight Cutting Ring 315 Bar DIN 2353
This stainless steel straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male NPT 1 1/2 inch threads. Connection 2 is a 38 mm cutting ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 315 bar (4569 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £115.37
Description
This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male NPT 1 1/2 inch threads. Connection 2 is a 38 mm cutting ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2S-MC series
The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
