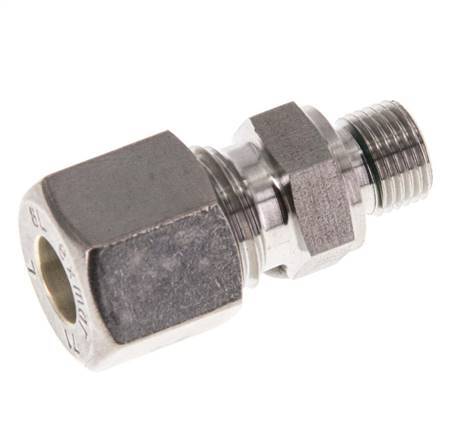

G 1/8'' Male x 8L Stainless steel Straight Compression Fitting with FKM Seal 315 Bar DIN 2353
This stainless steel straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has male G 1/8 inch threads. Connection 2 is a 8 mm compression ring. The sealing is FKM / PTFE. Suitable for temperatures from -20 °C to 200 °C (-4 °F to 392 °F). Max pressure of 315 bar (4569 psi). Rated for an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £18.72
Description
This straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has male G 1/8 inch threads. Connection 2 is a 8 mm compression ring. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of stainless steel (1.4571). It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 200 °C (-4 °F to 392 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2S-MC series
The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
