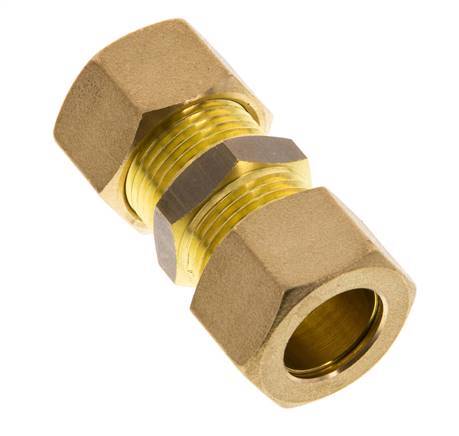

15mm Brass Straight Compression Fitting 82 Bar DIN EN 1254-2
This brass straight screw connection is designed with two compression ring connection points. Connection 1 is a 15 mm compression ring. Connection 2 is a 15 mm compression ring. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- £8.69
Description
This straight screw connection is designed with two compression ring connection points. Connection 1 is a 15 mm compression ring. Connection 2 is a 15 mm compression ring. It is a straight fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2S-C series
The FL2S-C series are straight fittings designed with either 2 compression ring connection points or 2 cutting ring connection points. They are made out of steel.
