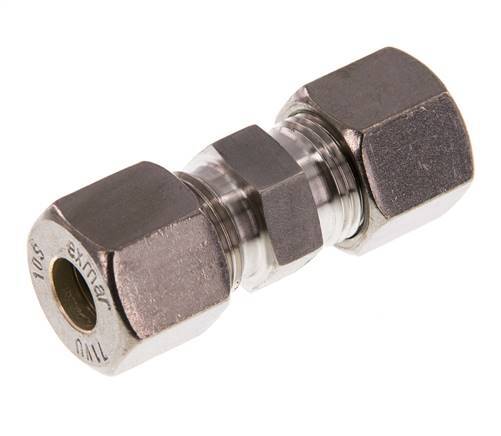

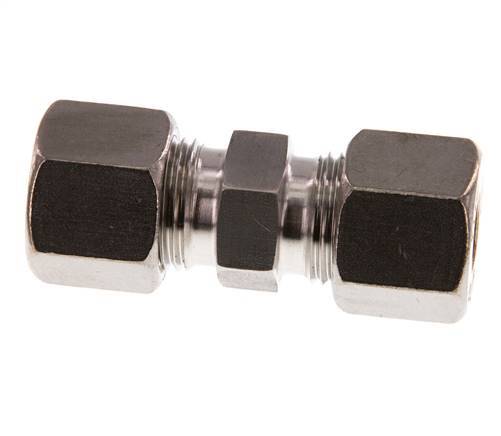

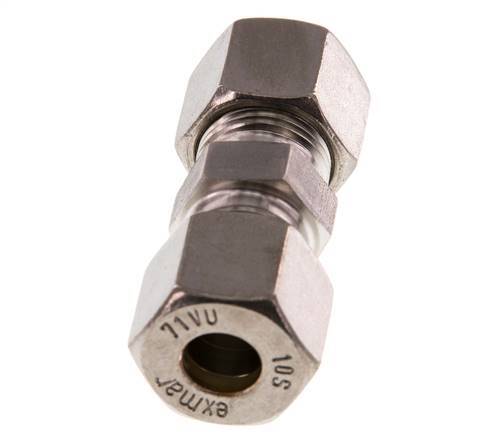

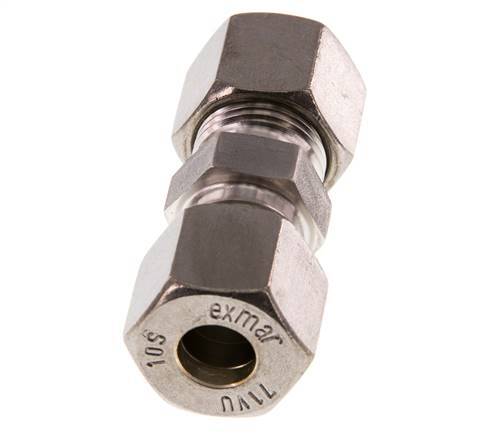

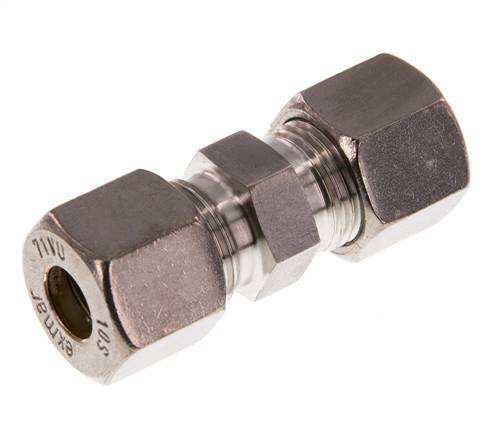

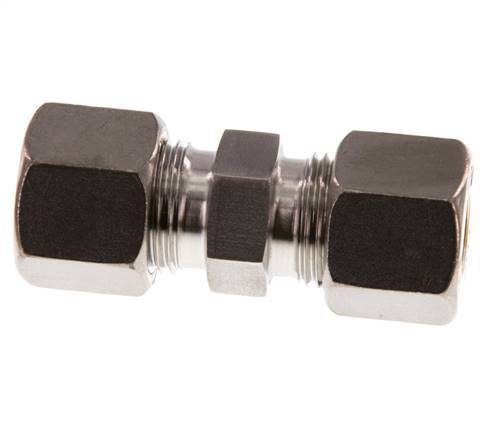

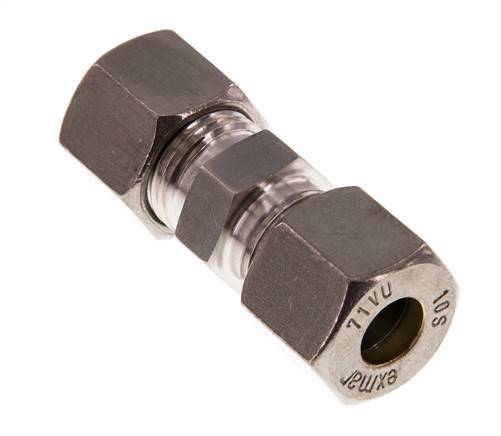

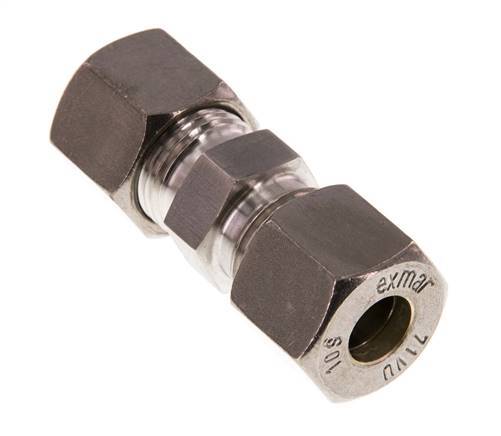

10S Stainless steel Straight Compression Fitting 630 Bar DIN 2353
Notice: This product will be discontinued in the future
This stainless steel straight screw connection is designed with two compression ring connection points. Connection 1 is a 10 mm compression ring. Connection 2 is a 10 mm compression ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 630 bar (9138 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Notice: This product will be discontinued in the future
Description
This straight screw connection is designed with two compression ring connection points. Connection 1 is a 10 mm compression ring. Connection 2 is a 10 mm compression ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Cons:
- Since it has a compression ring connection, it can only be used once
FL2S-C series
The FL2S-C series are straight fittings designed with either 2 compression ring connection points or 2 cutting ring connection points. They are made out of steel.
