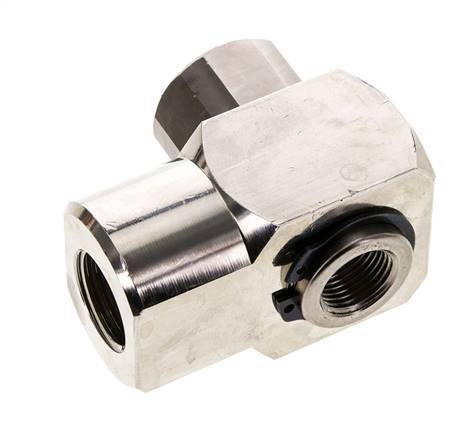

G 1/2'' Female Brass Rotary Joint 12 Bar with FKM Seal
This brass 1-way rotary joint is designed with elbow rotatable applications requiring 2 inputs. Connection 1 has female G 1/2 inch threads. Connection 2 has female G 1/2 inch threads. Connection 3 has female G 3/8 inch threads. The sealing is FPM/FKM. It is rotatable. It has a flow rate capacity of 3200 l/min. Suitable for temperatures from -10 °C to 85 °C (14 °F to 185 °F). Max pressure of 12 bar (174 psi).
- Regular price
- £220.59
Description
This 1-way rotary joint is designed with elbow rotatable applications requiring 2 inputs. Connection 1 has female G 1/2 inch threads. Connection 2 has female G 1/2 inch threads. Connection 3 has female G 3/8 inch threads. It comes with a gasket to ensure a proper seal can be made. It is made out of brass and is nickel-plated for surface protection. It has a FPM/FKM seal. It is suitable for media within a temperature range of -10 °C to 85 °C (14 °F to 185 °F). At 20 °C (68 °F), it can handle a maximum pressure of 12 bar (174 psi). It can withstand 550 rotations per minute. It has a flow rate capacity of 3200 l/min.
FL3-R series
The FL3-R series are 1-way rotary joints made out of brass. They have female input and output threads ranging from G 1/8 inch up to G 1 inch. The 1/8 inch and 1/4 inch input versions have 1 input and the larger inputs have 2 inputs. They can rotate up to 550 rpm.
