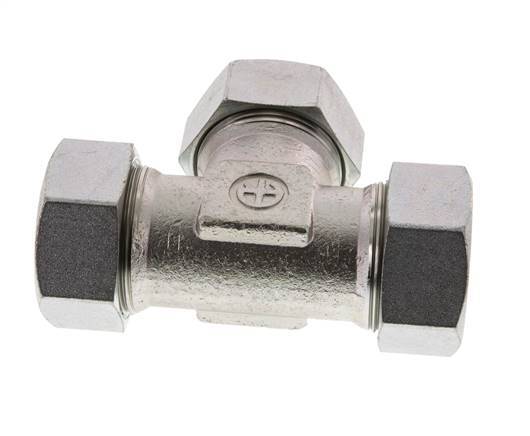

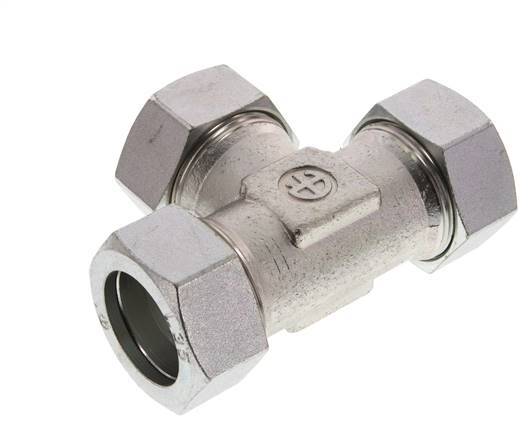

35L Zinc plated Steel Tee Cutting Ring 160 Bar DIN 2353
This steel T-screw connection is designed with 3 cutting ring connections in a t shape. Connection 1 is a 35 mm cutting ring. Connection 2 is a 35 mm cutting ring. Connection 3 is a 35 mm cutting ring. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 160 bar (2321 psi). Rated for an L (light) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
- Regular price
- £32.29
Description
This T-screw connection is designed with 3 cutting ring connections in a T shape. Connection 1 is a 35 mm cutting ring. Connection 2 is a 35 mm cutting ring. Connection 3 is a 35 mm cutting ring. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 160 bar (2321 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
Cons:
- Since it has a cutting ring connection, it can only be used once
FL3T-C series
The FL3T-C series has 3 connection ports of all compression ring connections or cutting ring connections. They are in a T shape. Made out of brass, steel, or stainless steel they have a max pressure of 630bar for some models.
