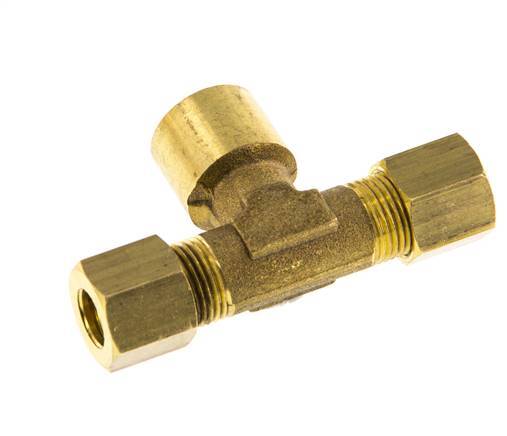

G 1/4'' x 8mm Brass Tee Compression Fitting 135 Bar DIN EN 1254-2
This brass T-piece is designed with one male threaded connection and two compression ring connection ports in a t shape. Connection 1 has female G 1/4 inch threads. Connection 2 is a 8 mm compression ring. Connection 3 is a 8 mm compression ring. Suitable for temperatures from -60 °C to 300 °C (-76 °F to 572 °F). Max pressure of 135 bar (1958 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- £5.01
Description
This T-piece is designed with one male threaded connection and two compression ring connection ports in a T shape. Connection 1 has female G 1/4 inch threads. Connection 2 is a 8 mm compression ring. Connection 3 is a 8 mm compression ring. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 135 bar (1958 psi). It is made in accordance with the DIN EN 1254-2.
Cons:
- Since it has a compression ring connection, it can only be used once
FL3T-MO series
The FL3T-MO series has 3 connection ports. One male threaded port and two compression ring connection ports in the shape of a T. Made out of brass with a max pressure of 150 bar.
