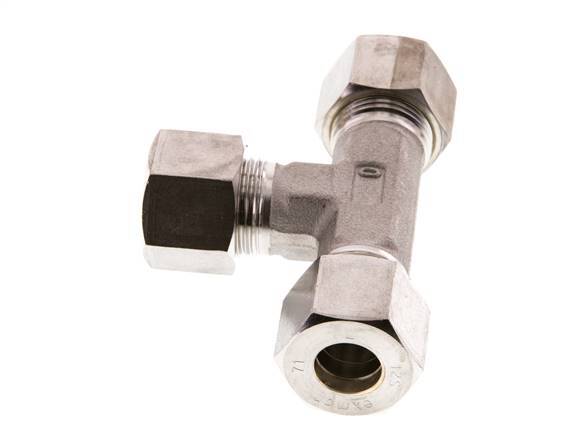

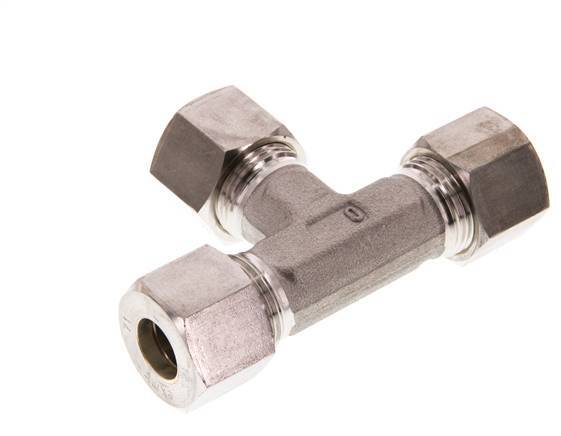

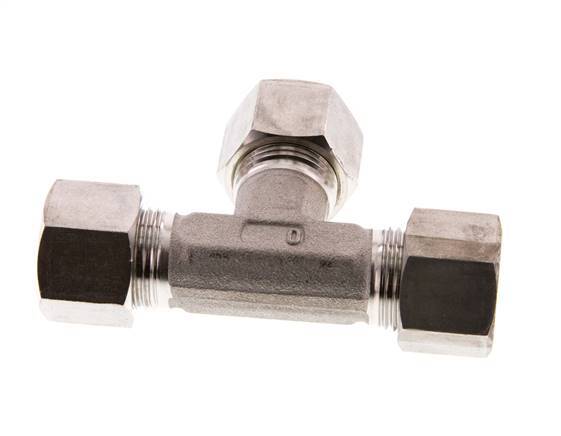

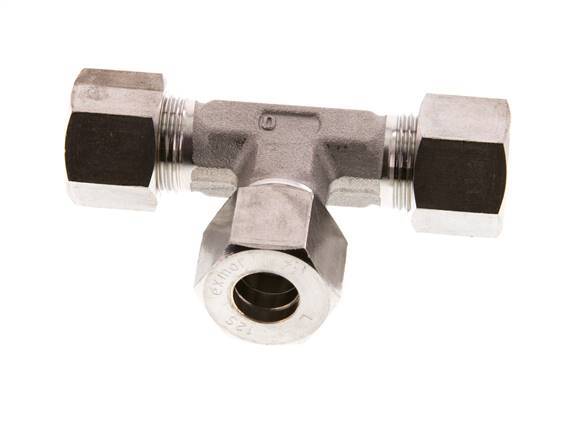

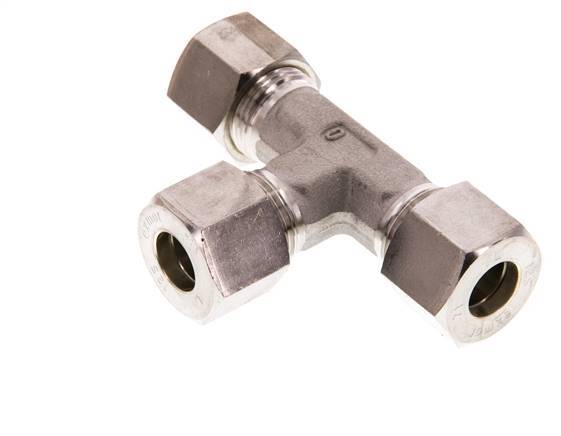

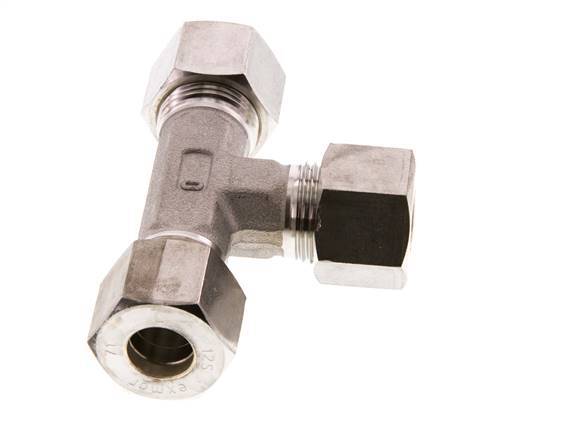

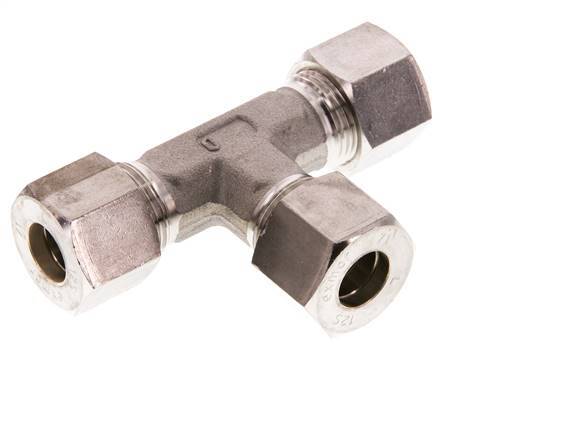

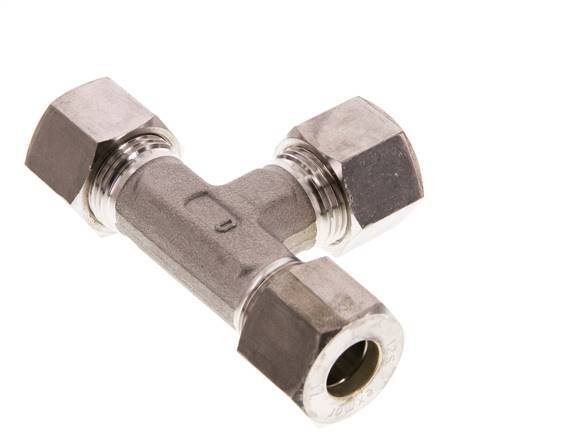

12S Stainless steel Tee Compression Fitting 630 Bar DIN 2353
Notice: This product will be discontinued in the future
This stainless steel T-screw connection is designed with 3 compression ring connections in a t shape. Connection 1 is a 12 mm compression ring. Connection 2 is a 12 mm compression ring. Connection 3 is a 12 mm compression ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 630 bar (9138 psi). Rated for an S (heavy) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
Notice: This product will be discontinued in the future
Description
This T-screw connection is designed with 3 compression ring connections in a T shape. Connection 1 is a 12 mm compression ring. Connection 2 is a 12 mm compression ring. Connection 3 is a 12 mm compression ring. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the ISO 8434-1 (DIN 2353).
Cons:
- Since it has a compression ring connection, it can only be used once
FL3T-C series
The FL3T-C series has 3 connection ports of all compression ring connections or cutting ring connections. They are in a T shape. Made out of brass, steel, or stainless steel they have a max pressure of 630bar for some models.
