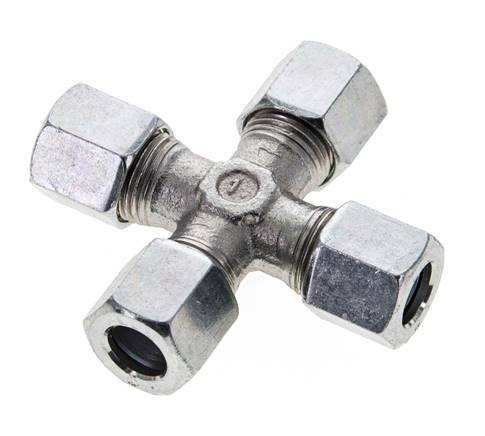

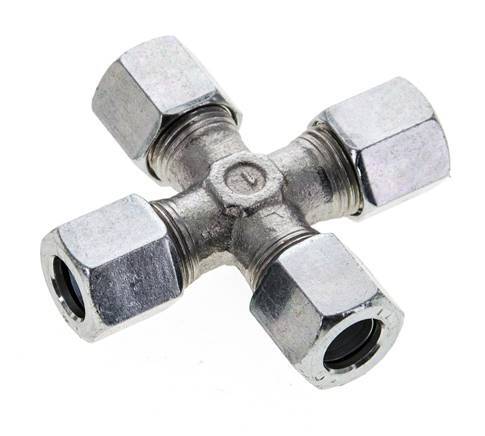

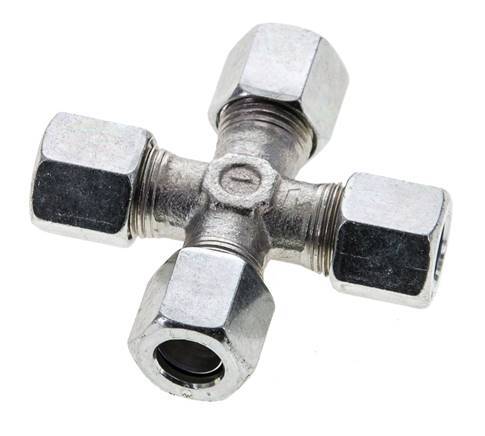

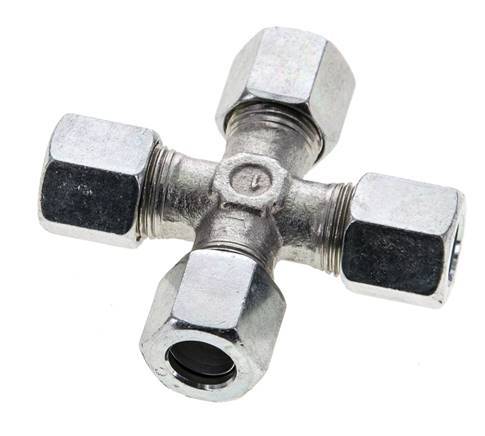

8LL Zinc plated Steel Cross Cutting Ring 100 Bar DIN 2353
This steel cross screw connection is designed with four cutting ring connection ports in a cross shape. Connection 1 is a 8 mm cutting ring. Connection 2 is a 8 mm cutting ring. Connection 3 is a 8 mm cutting ring. Connection 4 is a 8 mm cutting ring. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 100 bar (1450 psi). Rated for an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- £14.79
Description
This cross screw connection is designed with four cutting ring connection ports in a cross shape. Connection 1 is a 8 mm cutting ring. Connection 2 is a 8 mm cutting ring. Connection 3 is a 8 mm cutting ring. Connection 4 is a 8 mm cutting ring. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 100 bar (1450 psi). According to the DIN 2353, it has an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Cons:
- Since it has a cutting ring connection, it can only be used once
FL4X-C series
The FL4X-C series has 4 connection ports in the shape of a cross. It either has 4 compression ring connection ports or 4 cutting ring connection ports. Made out of brass, steel, or stainless steel, they have a max pressure up to 630 bar.
