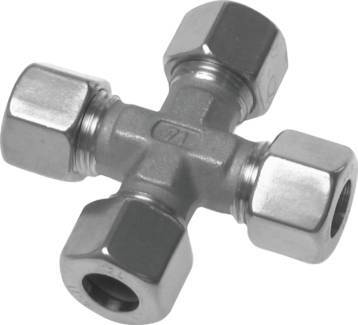

20S Stainless steel Cross Compression Fitting 400 Bar DIN 2353
Notice: This product is discontinued
This stainless steel cross screw connection is designed with four compression ring connection ports in a cross shape. Connection 1 is a 20 mm compression ring. Connection 2 is a 20 mm compression ring. Connection 3 is a 20 mm compression ring. Connection 4 is a 20 mm compression ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Notice: This product is discontinued
Description
This cross screw connection is designed with four compression ring connection ports in a cross shape. Connection 1 is a 20 mm compression ring. Connection 2 is a 20 mm compression ring. Connection 3 is a 20 mm compression ring. Connection 4 is a 20 mm compression ring. It is made out of stainless steel (1.4401). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Cons:
- Since it has a compression ring connection, it can only be used once
FL4X-C series
The FL4X-C series has 4 connection ports in the shape of a cross. It either has 4 compression ring connection ports or 4 cutting ring connection ports. Made out of brass, steel, or stainless steel, they have a max pressure up to 630 bar.
