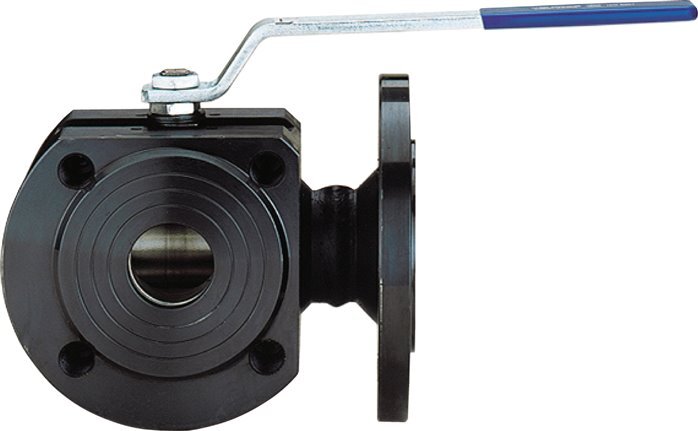

Flanged Ball Valve 3-Way L-port DN15 PN16 Steel Reduced Bore
This 3-way L-port DN 15 flanged ball valve is made of steel with Teflon (PTFE) sealings. The valve is suitable for water, oil, air and fuel up to a maximum pressure of 16 bar (232 psi) and vacuum (max. -0.9 bar or -13 psi). Use the quarter turn handle to operate the valve. The valve operates within a temperature range from -10 to 160 °C (14 to 320 °F).
- Regular price
- £476.23
Description
This 3-way L-port flanged ball valve with a reduced bore of 10 mm provides reliable on/off flow control. The valve has DN 15 PN 16 flanges. The housing of the valve is made of steel and the ball is made of stainless steel 304 (1.4301). The sealings are made of Teflon (PTFE). The valve is suitable for water, oil, air and fuel up to a maximum pressure of 16 bar (232 psi) and vacuum (max. -0.9 bar or -13 psi). The valve operates in a temperature range from -10 to 160 °C (14 to 320 °F). The ports overlap during the ball rotation. Avoid opening and closing it quickly to protect the system from the possible water hammer and further damage. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended. Always check if the design of the mounting flange suits your actuator.
Pros:
- Unobstructed flow path thanks to the full bore design
- Suitable for vacuum
- Easy installation and maintenance thanks to the standardized DN 15/PN 16 flange
Cons:
- Pressure inlet only allowed from the center port
