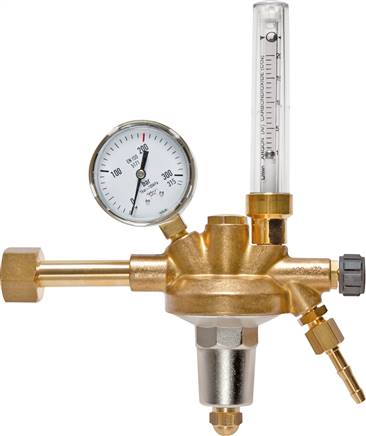

Forming Gas 200 bar Bottle Regulator With 0 to 30 l/min Flow Setting Range
Brass bottle pressure regulator suitable for forming gas applications up to a maximum inlet pressure of 200 bar. It is designed to mount directly on a W 21.8 x 1/14 LH bottle with a female threaded port. It has a 6 mm hose barb to connect a hose. The flow setting ranges from 0 to 30 l/min. The mounted pressure gauge indicates the inlet pressure and the flow meter indicates the outlet flow. The regulator is equipped with a shut-off valve for on/off control. In addition to that, it is made in accordance to DIN EN ISO 2503, which is related to gas welding equipment.
- Regular price
This is a brass bottle pressure regulator for forming gas at a maximum pressure of 200 bar. It lowers the inlet pressure and sets the outlet flow to a preset value, ranging from null l/min. Connect the W 21.8 x 1/14 LH female threaded port with a supply bottle and a 6 mm hose barb with a suitable hose. To set the pressure, screw the rod, on the lower side of the body, in or out. The pressure gauge on the inlet port indicates the inlet pressure and the flow meter on the outlet port indicates the preset working flow rate. The regulator is designed in accordance with DIN EN ISO 2503 and the bottle connection port conforms to DIN 477-1 standard.
- Mounted with a pressure gauge for inlet pressure and a flow meter for outlet flow
- Equipped with a shut off valve for on/off control
- Designed in accordance with DIN EN ISO 2503 for welding applications
- The bottle connection conforms to DIN 477-1 standard
- Replaceable hose connection
- Suitable only for forming gas
Bottle pressure regulator series consists of devices used for gas welding purposes designed in accordance with DIN EN ISO 2503. The regulators are suitable for different gases, like air, nitrogen, argon, helium, CO2. They can be used for maximum inlet pressures of up 300 bar and set the working pressure within the ranges of 0-10, 0-20 or 0-100 bar. Depending on the design these regulators can be equipped with either two pressure gauges or with a pressure gauge and flow meter combination. Some pressure regulators are equipped with a shut-off valve that provides on/off control.
