Image may vary slightly
See specifications for accurate information.
Reference: P276F
Brand: Knocks
Mfr. Part: CL.55 H AM10

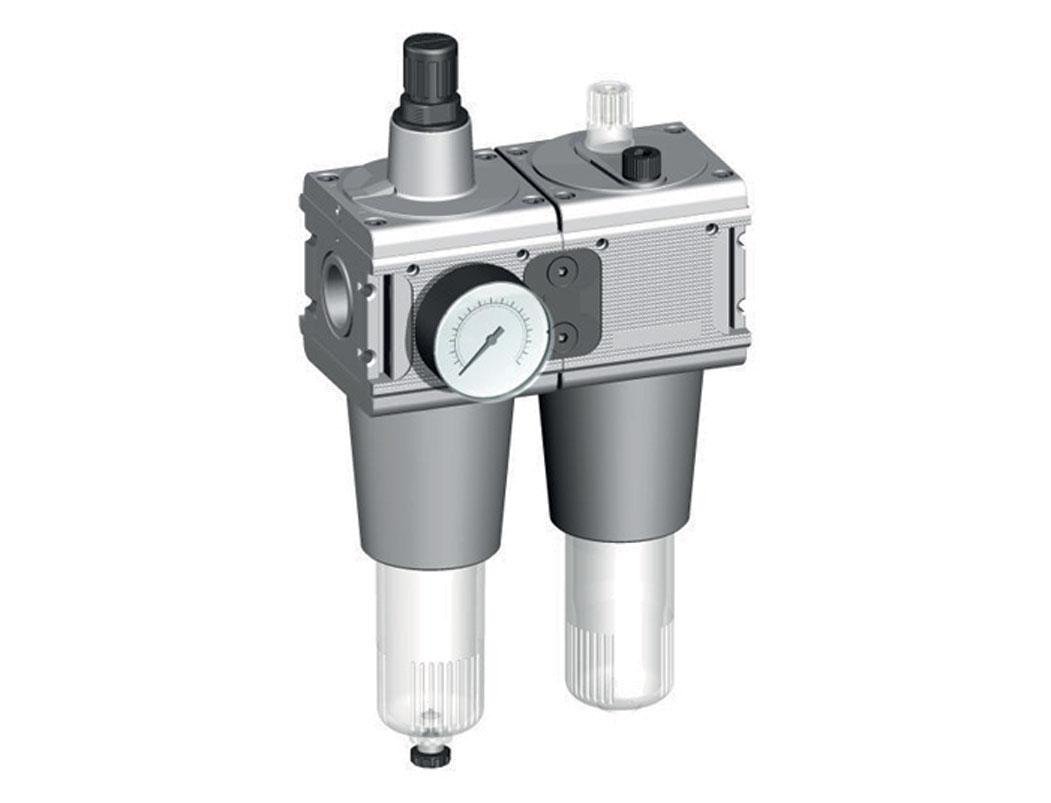

This G 1 inch pneumatic FRL (Filter Regulator Lubricator) unit is used to filter out contaminants larger than 40 microns and regulate the output pressure between 0.5 to 10.0 bar (7 to 145 psi). and lubricate the air with oil. The regulator is self-relieving. Includes a pressure gauge. The max flow rate is 13500 l/min (always use the flow chart for correct sizing). The auto drain valve will open and close automatically based on residue level. Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 800 l/min. The oil capacity is 450 cm3. To adjust the output pressure, pull the hand wheel up and twist. Lock by pushing the wheel back in.

View all
Regular price
£426.54
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

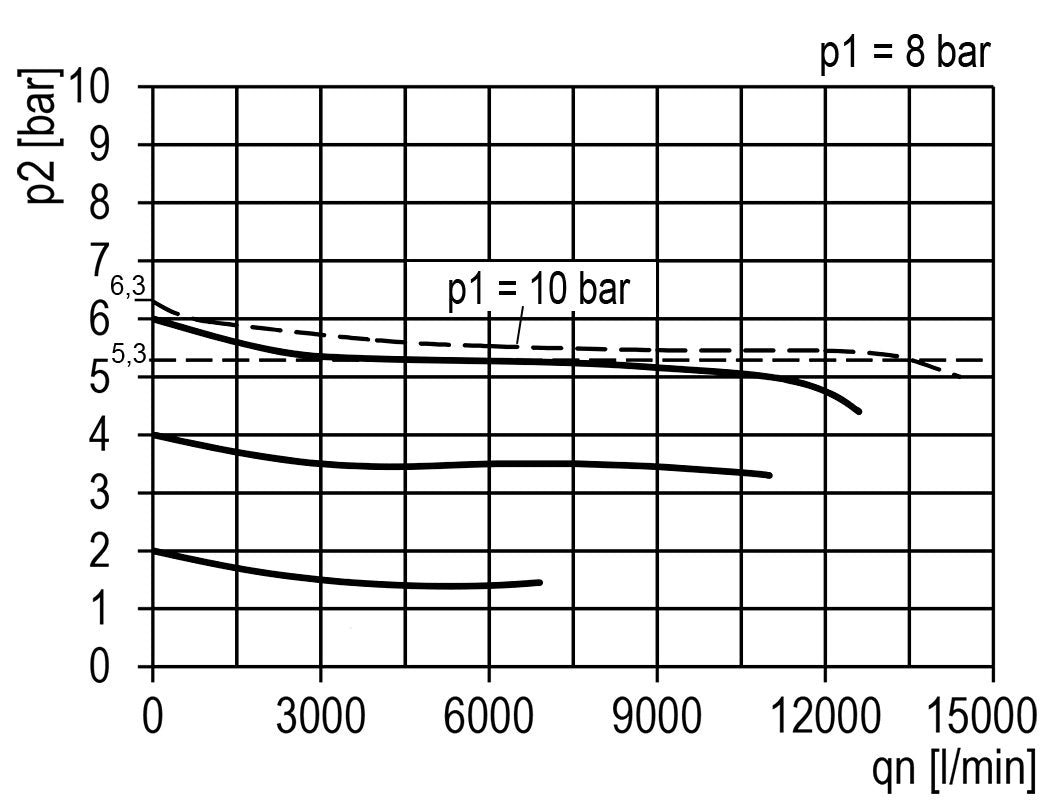

This filter regulator lubricator (FRL) combines three functions. The filter removes water, dirt and other harmful particles larger than 40 microns. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 10.0 bar (7 to 145 psi). The lubricator introduces oil into the pneumatic air to reduce internal friction for pneumatic components. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1 inch ports. The maximum flow rate is 13500 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting. It can be locked after adjustment by pushing the hand wheel back in.

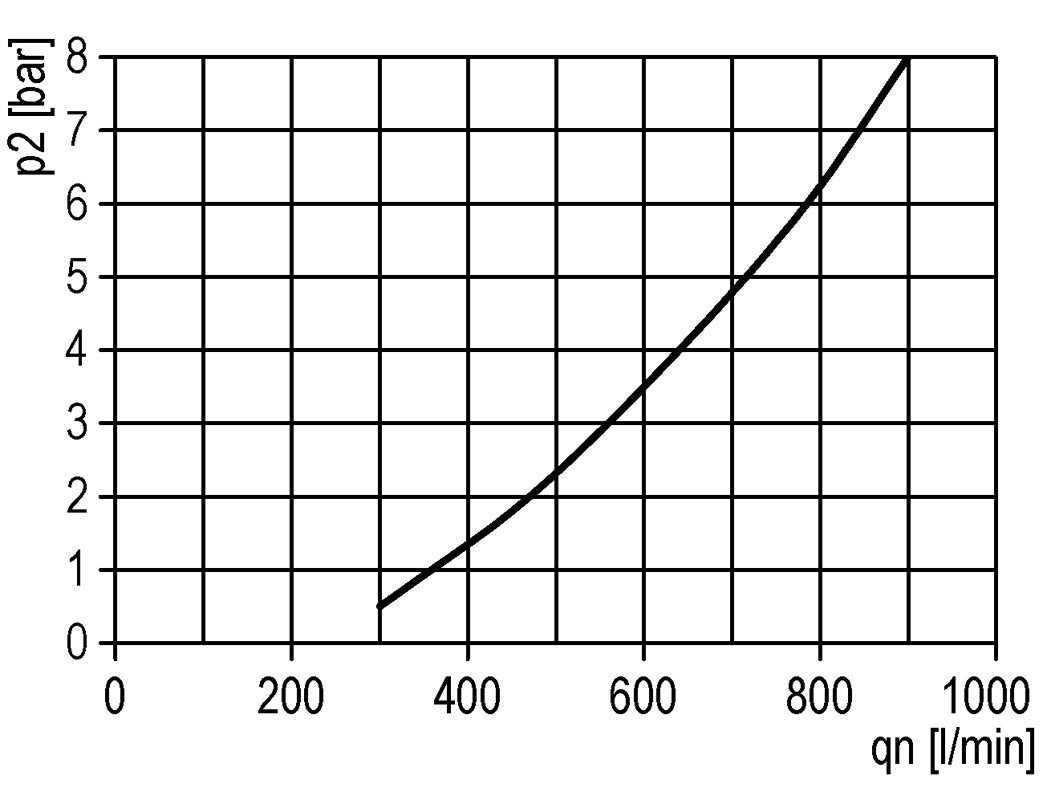

The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has an auto condensate drain with a drain capacity of 125 cm3. There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The lubricator requires a minimal flow rate of 800 l/min and can hold 450 cm3 of oil. The housing material is made out of aluminium and the filter and lubricator bowls are made of metal. It has a position indicator to see the bowl level.

Mounting brackets need to be ordered separately.
