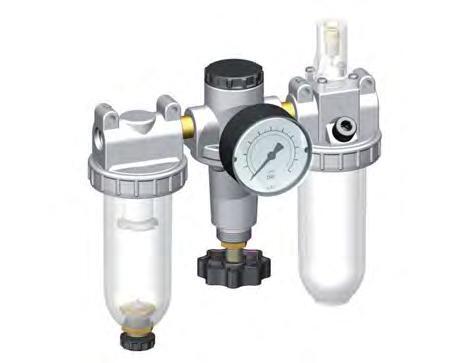

FRL 3-Part G1/4'' 600 l/min 0.5-10.0bar/7-145psi Semi-Auto Metal Standard 1
This G 1/4 inch pneumatic FRL (Filter Regulator Lubricator) unit is used to filter out contaminants larger than 5 microns and regulate the output pressure between 0.5 to 10.0 bar (7 to 145 psi). and lubricate the air with oil. The regulator is self-relieving. Includes a pressure gauge. The max flow rate is 600 l/min (always use the flow chart for correct sizing). The semi-auto drain valve will open every time the compressed air is shut off. Suitable for a 25.0 bar (363 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The min flow for oil drip is 50 l/min. The oil capacity is 40 cm3. To adjust the output pressure, pull the hand wheel up and twist.
- Regular price
- £96.89
Description

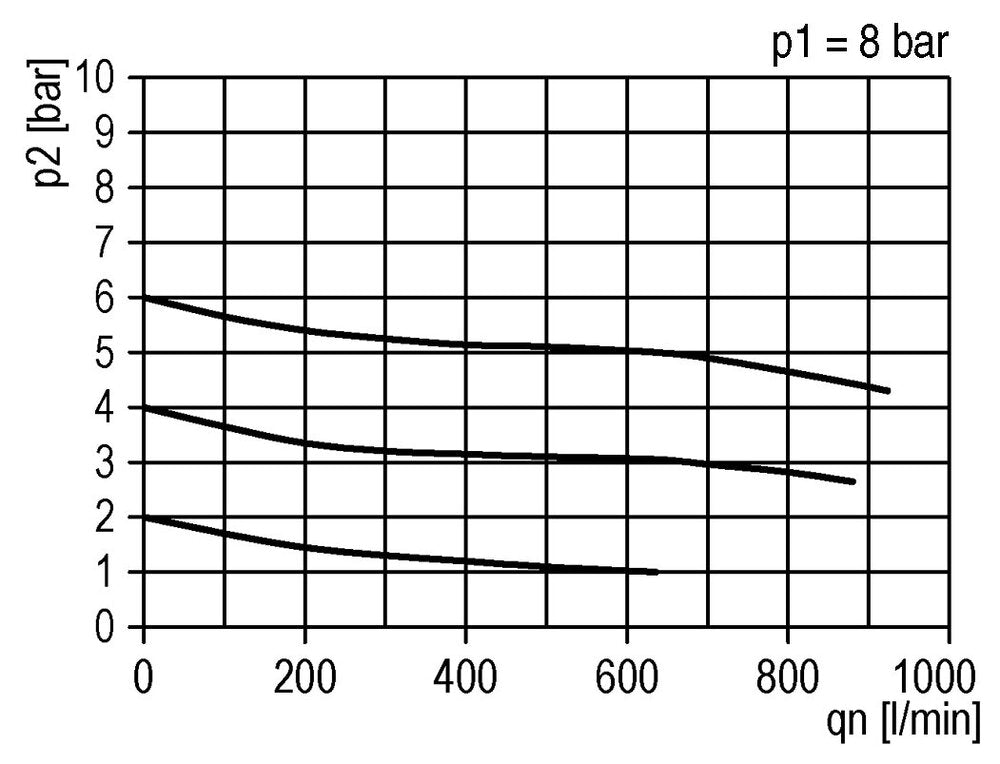

This filter regulator lubricator (FRL) combines three functions. The filter removes water, dirt and other harmful particles larger than 5 microns. The pressure regulator adjusts the pressure continuously to a stable level, even when the input pressure varies. The level can be adjusted between 0.5 to 10.0 bar (7 to 145 psi). The lubricator introduces oil into the pneumatic air to reduce internal friction for pneumatic components. Most modern pneumatic equipment doesn't need lubrication, only use a lubricator if downstream equipment requires it. The recommended lubricating oil type is ISO-VG32 turbine oil. This model has G 1/4 inch ports. The maximum flow rate is 600 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve. Note that the pressure regulator controls the output pressure, not the flow rate. The output pressure can be adjusted by pulling the hand wheel up and twisting.

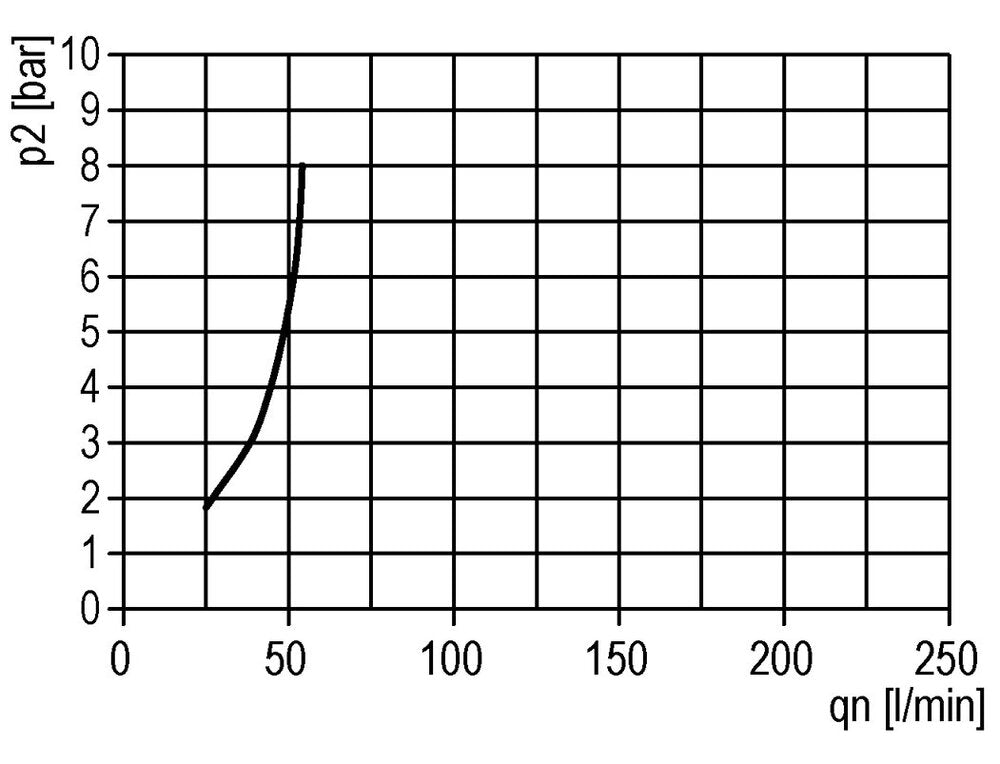

The maximum input pressure is 25.0 bar (363 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has a semi-auto condensate drain with a drain capacity of 35 cm3. Semi-auto means that it drains as soon as the airline is depressurized, however it can also be drained manually. There is a built-in pressure relief valve on the outlet side when the set pressure is exceeded. The lubricator requires a minimal flow rate of 50 l/min and can hold 40 cm3 of oil. The housing material is made out of zinc die-cast and the filter and lubricator bowls are made of metal.
Mounting brackets need to be ordered separately.
