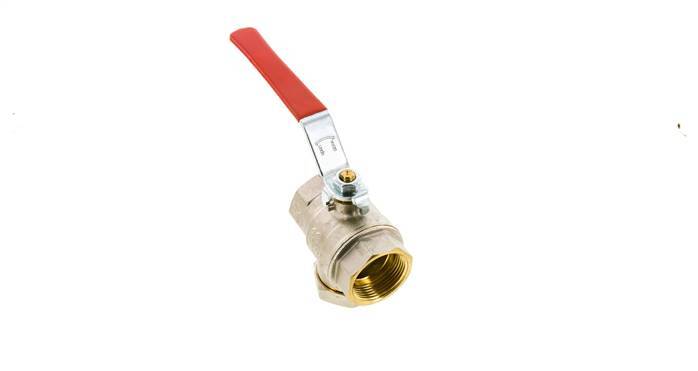

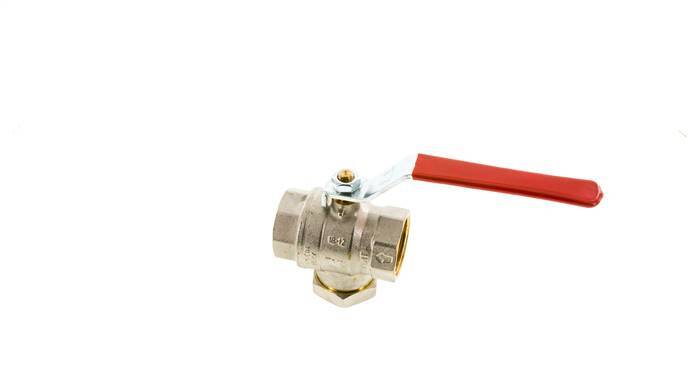

G 1-1/4 inch Integrated Strainer 2-Way Brass Ball Valve
2-Way brass ball valve with integrated strainer for media filtering with G 1-1/4 inch ports and a handle for on/off flow control. 28 mm nominal diameter and a maximum pressure of 20 bar (290 psi). The valve can be used within a temperature range from -20 to 100 °C (-4 to 212 °F). Nickel-plated brass housing, brass ball and PTFE/FKM seals.
- Regular price
- £84.49
Description
This 2-way ball valve from Tameson with a nominal diameter of 28 mm and a 0.5 mm mesh is designed for media filtering and on/off flow control.
The valve has G 1-1/4 inch threaded ports. This is BSPP (British Standard Pipe Parallel. With our range of 1-1/4 inch fittings, the valve can be installed in any pipe.
The housing of the valve is made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE/FKM. The valve is suitable for a wide variety of media, such as water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum pressure of 20 bar (290 psi) The valve can be used within a temperature range from -20 to 100 °C (-4 to 212 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- Economical replacement for two shut-off valves and a strainer
- Easy inspection and maintenance of the filter screen which is depressurised when the valve is shut off
- Wide operating temperature range
Cons:
- Not suitable for aggressive media
- Suitable only for manual actuation
BL2BN-M-IST series
The integrated strainer brass ball valve series BL2BN-M-IST includes ball valves designed for appliances where filtering of the media is necessary between two pipes. The series offer economic replacement for two shut-off valves and a strainer. The valves are equipped with female threaded ports from 1/8 to 3/4 inch. The ports conform to BSPP (British Standard Pipe Parallel). The housing is made of nickel-plated brass and the seals are PTFE/FKM. The valves are suitable for a wide variety of media, such as water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum pressure of 30 bar (435.11 psi). This series is handle operated within the temperature range from -20 to 100 °C (-4 to 212 °F).
