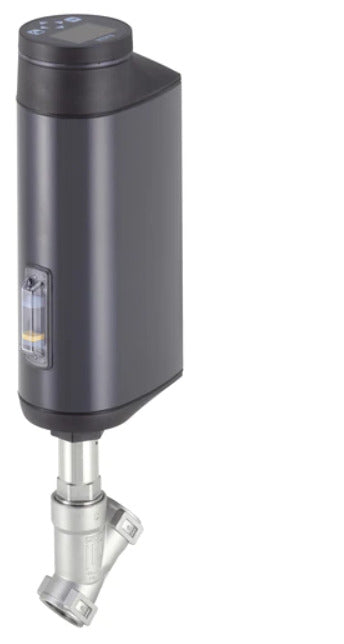

G 2 inch Process Controller NC Stainless Steel Electric Angle Seat Valve - 3360 - 20002126
Bürkert angle seat valve (type 3360) with G 2 inch female threaded ports. Designed for process control. For media temperatures ranging from -10 to 185°C (14 to 365°F) and a maximum pressure of up to 10 bar (140 psi). Housing of stainless steel with a stainless steel sealing and a Kv-value of 53 m3/h (Cv-value of 61.3 gpm). Electrically actuated with a 24V DC actuator. The actuator uses a büs communications protocol.
- Regular price
- £3467.49
Description
This Bürkert 2/2-way (type 3360) angle seat valve is designed for process control. This means that, thanks to the integrated PID controller, this valve can be used to directly control a process parameter, such as a level, pressure, flow rate or temperature. The position of the valve is automatically determined based on the input of the actual process value as well as the process set-point value.
This valve has G 2 inch female threaded ports. The valve has a stainless steel housing with a stainless steel sealing. The valve is delivered as normally closed (NC), which means the valve opens when voltage is applied. The actuator has an energy storage unit. The unit can be used to set a safe position for the valve to return to in case of power loss.
For media temperatures ranging from -10 to 185°C (14 to 365°F) and a maximum pressure of up to 10 bar (140 psi). The valve has a Kv-value of 53 m3/h (Cv-value of 61.3 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. With its recirculating ball screw, the electric actuator is suitable for use in hygienic and aggressive environments. The high-speed 24V DC electric actuator moves the angle seat valve with ball screw to the desired end position. The valve takes 6.6 s to go from fully open to fully closed position. The actuator uses a büs communications protocol.
Pros:
- Suitable for applications with food
- Versatile diagnostic, process monitoring and preventive maintenance thanks to fieldbus
- High IP protection IP65/67 ensures adequate splash protection
- An electric actuator with a ball screw precisely positions the control cone
Series:
The Bürkert Type 3360 is the best solution for shut-off applications under demanding operating conditions. Positioning the control cone is extremely precise with the electric actuator and ball screw. This system's unique feature is its high positioning speed of up to 6 mm/s, which reacts quasi-delay-free to process signals. With their closed design and robust surfaces, the actuator and valve are perfectly matched. The result is a fast, residue-free cleaning that meets hygienic requirements. The Type 3360 is well suited for harsh environments thanks to its protection class IP65/67 and high impact and vibration resistance. With the Type 3360 fieldbus-compatible valve controller, you can monitor your processes, diagnose valve problems, and perform predictive maintenance.
