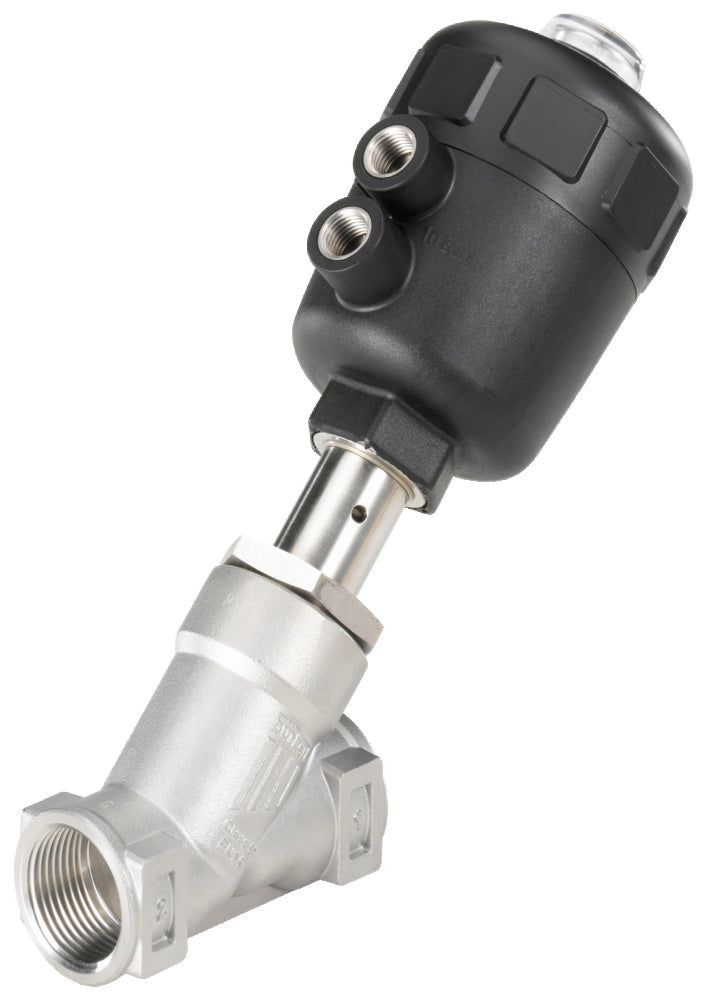

G 2'' NC Pneumatic 2-Way Angle Seat Valve Stainless Steel - 2000 - 344395

G 2'' NC Pneumatic 2-Way Angle Seat Valve Stainless Steel - 2000 - 344395
Image may vary slightly
See specifications for accurate information.
Reference: 344395
Brand: Burkert

Bürkert 2/2-way pneumatic angle seat valve (type 2000) with G 2 inch female threaded ports. Designed for shut-off applications, normally closed (NC). For media temperatures from -10 to 185°C (14 to 365°F) at a pressure of 0 to 16 bar (0 to 224 psi). Housing of stainless steel with PTFE sealing and a 50 mm orifice. The Kv-value is 49 m3/h (Cv-value of 56.6 gpm). The valve is pneumatically actuated with an IP67 PA piston actuator.

View all
Note: product cannot be returned
Regular price
£602.43
excl VAT

In stock +10 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 10 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 12 - 14 business days

Description
Specifications
Downloads

Bürkert 2/2-way pneumatic angle seat valve (type 2000) with G 2 inch female threaded ports. The valve has a stainless steel housing with PTFE sealing and an orifice size of 50 mm. The control function of the valve is normally closed (NC), which means the valve opens when air is applied. Suitable for a media temperatures from -10 to 185°C (14 to 365°F) at a pressure of 0 to 16 bar (0 to 224 psi). The valve has a Kv-value of 49 m3/h (Cv-value of 56.6 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. The PTFE sealing is resistant to almost all chemicals. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium.

Pros:

  • Y-shape design allow for higher flow capacity and Kv value compared to vertical globe valves
  • Easily mount a compact Burkert 8697 position feedback and control unit on the actuator (not included)

Cons:

  • Flow above seat can cause water hammer when used with liquids. Use flow below seat versions for liquids
  • Type 2000 doesn't have a control cone, so it is not as suited to regulate flow rate as Burkert type 2702 or 2712

Series:

The Bürkert type 2000 2/2-way angle seat valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
