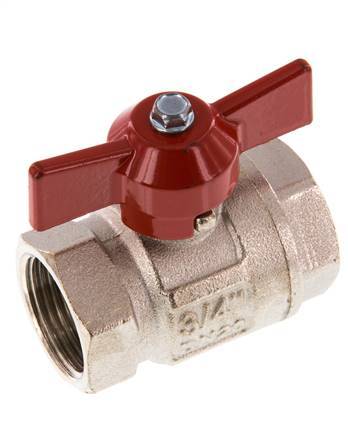

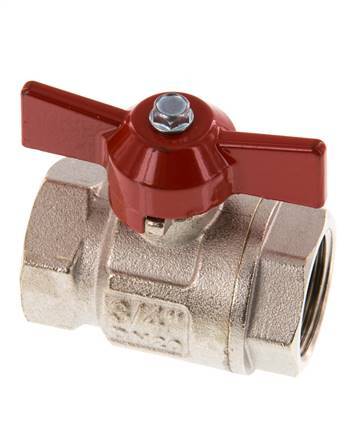

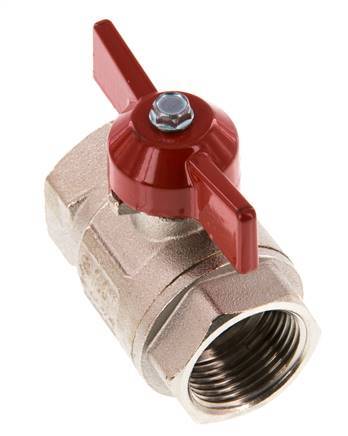

G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve

G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
G 3/4 inch Butterfly Handle Compact 2-Way Brass Ball Valve
Reference: BL2BN-M-SD-NK-034
Brand: Tameson

2-way compact ball valve with G 3/4 inch ports and a butterfly handle for on/off flow control. The valve bore is 20 mm and the maximum pressure is 40 bar or 580 psi. Suitable for water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air. Also suitable for vacuum (max. -0.9 bar or -13 psi). Suitable for temperatures from -20 to 150 °C (-4 to 302 °F). Nickel-plated brass housing, hard chrome plated brass ball and PTFE/NBR sealings.

View all
Regular price
£13.69
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 241 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This 2-way compact ball valve of nickel-plated brass with a valve bore of 20 mm is designed for on/off flow control.

The valve has G 3/4 inch ports. This is BSPP (British Standard Pipe Parallel). With our range of 3/4 inch fittings, the valve can be installed in any pipe.

The housing of the valve is made of nickel-plated brass, the ball is made of hard chrome plated brass and the sealings are made of PTFE/NBR. This valve is suitable for a wide variety media, such as water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum operating pressure of 40 bar or 580 psi. Also suitable for vacuum (max. -0.9 bar or -13 psi). The valve is suitable for temperatures from -20 to 150 °C (-4 to 302 °F).

Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.

Pros:

  • Suitable for vacuum application
  • No extra friction losses thanks to the full bore design

Cons:

  • Not suitable for aggressive media

BL2BN-M-SD series

View our 2-way compact female and male to female threaded brass ball valve BL2BN-M-SD series. The ports range from 1/4 inch to 4 inch. The housing material is nickel-plated brass, the ball material is hard chrome plated brass and the sealings are PTFE/NBR. The valves are suitable for a wide variety media, such as water, neutral, gaseous and non-aggressive, liquid media, mineral oils and compressed air up to a maximum operating pressure of 50 bar or 725 psi. The series is also suitable for vacuum applications (max. -0.9 bar or -13 psi). The valves can be used within a temperature range from -20 to 150 °C (-4 to 302 °F). The series includes handle and butterfly handle operated valves. The BL2BN-M-SD series provides reliability and a long service life.
