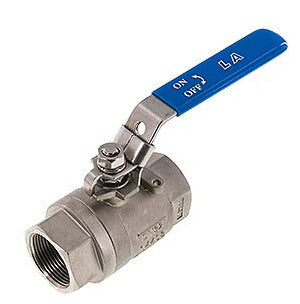

G 3 inch 2-Way Stainless Steel Ball Valve
2-way ball valve with G 3 inch ports and a handle for on/off flow control. The valve bore is 80 mm and the maximum pressure is 40 bar or 580 psi. Suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. Suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Stainless steel housing and ball and PTFE sealings.
- Regular price
- £543.87
Description
This 2-way ball valve of stainless steel with a valve bore of 80 mm is designed for on/off flow control.
The valve has G 3 inch ports. This is BSPP (British Standard Pipe Parallel). With our range of 3 inch fittings, the valve can be installed in any pipe.

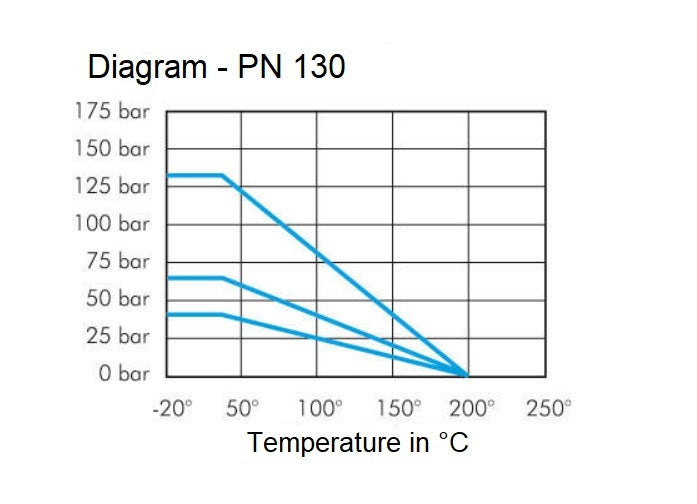

The housing and the ball of the valve are made of stainless steel and the sealings are made of PTFE. Suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media up to a maximum operating pressure of 40 bar or 580 psi. The valve is suitable for temperatures from -20 to 200 °C (-4 to 392 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If it is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- No extra friction losses thanks to the full bore design
- Suitable for aggressive media thanks to the high quality materials
- Wide operating temperature range -20 to 200 °C (-4 to 392 °F) thanks to the high quality materials
Cons:
- Not suitable for vacuum
BL2SH-M series
View our 2-way female threaded stainless steel ball valve BL2SH-M series. The ports range from 1/4 inch to 3 inch. The housing and the ball material is stainless steel and the sealings are PTFE. The valves are suitable for a wide variety media, such as water, steam, oil, compressed air, fuels, solvents, aggressive media up to a maximum operating pressure of 130 bar or 1885 psi. The valves can be used within a temperature range from -20 to 200 °C (-4 to 392 °F). The whole series is handle operated and provides reliability and a long service life.
