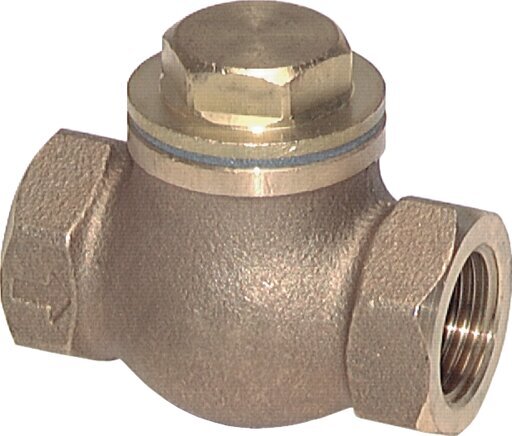

G 3'' Red Brass Lift Check Valve 16 bar (232 psi) Heavy Duty
Female threaded G 3 inch lift check valve made of red brass with a PTFE sealing. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for water between -10 and +100°C (14 and 212°F), and saturated steam at 9 bar (130.5 psi) to a max temperature of +180°C (356°F). The valve uses pressure of the media and gravity to work so it must be installed horizontally. It is ideal for heavy-duty applications with frequent cycles due to its minimal moving parts that reduce wear. The Kv-value is 72 m3/h (1200.24 l/min at 1 bar pressure drop). In imperial units: Cv = 83.23 GPM at 1 psi pressure drop.
- Regular price
- £435.61
Description
Female threaded G 3 inch lift check valve made of red brass with a PTFE sealing. The maximum operating pressure is 16 bar (232 psi). The valve is suitable for water between -10 and +100°C (14 and 212°F), and saturated steam at 9 bar (130.5 psi) to a max temperature of +180°C (356°F). The valve uses pressure of the media and gravity to work so it must be installed horizontally. It is ideal for heavy-duty applications with frequent cycles due to its minimal moving parts that reduce wear. The Kv-value is 72 m3/h (1200.24 l/min at 1 bar pressure drop). In imperial units: Cv = 83.23 GPM at 1 psi pressure drop.
Pros:
- Ideal for heavy-duty and frequent use
- Suitable for saturated steam up to 9 bar (130.5 psi) and +180°C (356°F)
Cons:
- Only for horizontal installation
