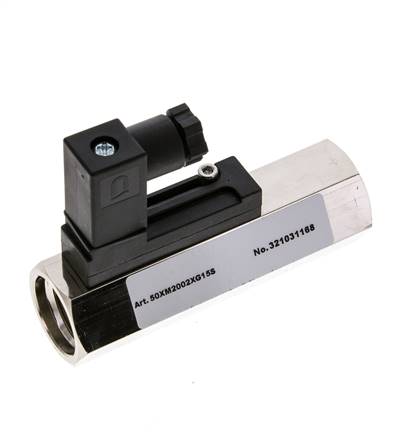

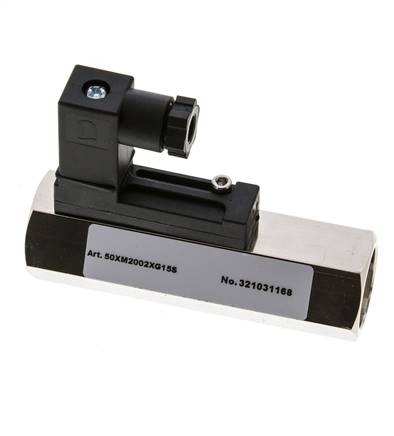

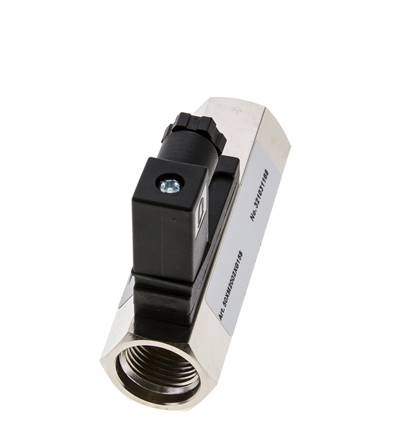

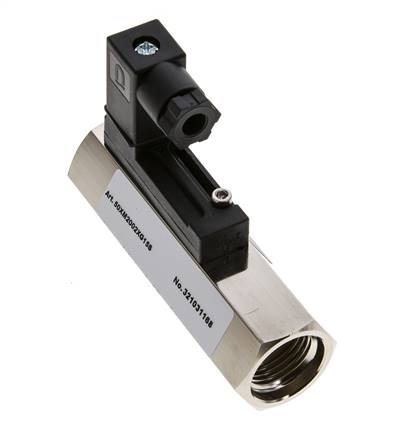

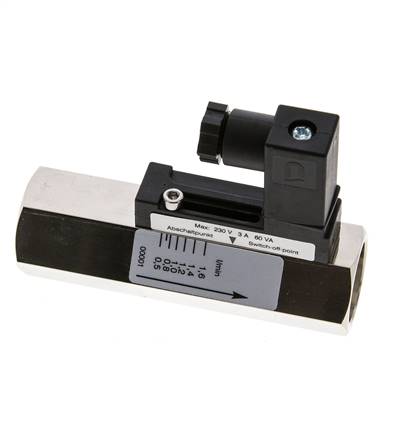

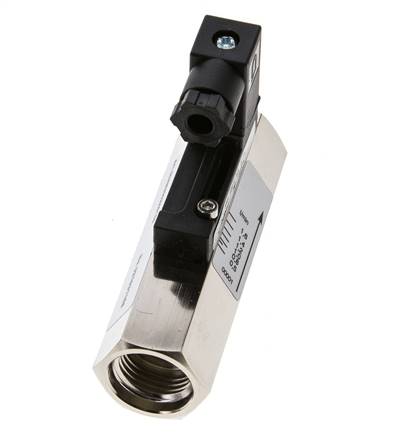

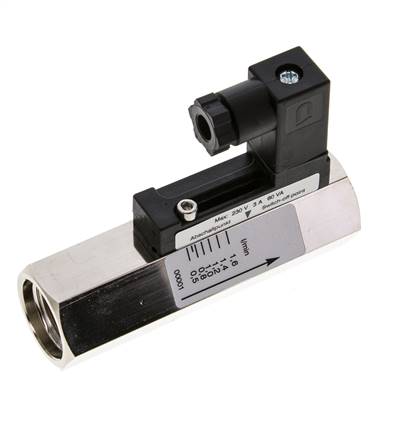

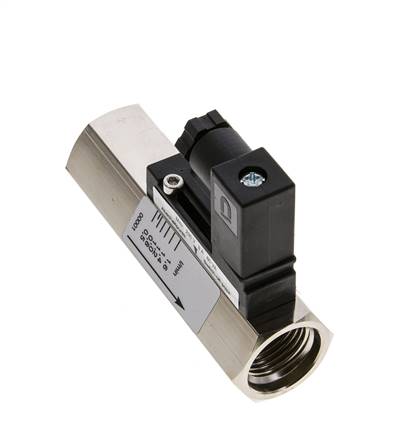

G1/2'' brass variable area flow switch oil 0.5-1.6 l/min 300 bar
Closes a normally open contact at an adjustable oil flow of 0.5 to 1.6 l/min. The potential-free reed contact carries no voltage of its own, so it can be wired directly to a PLC (programmable logic controller) input. It switches max. 60 VA, about 0.26 A at 230 V AC; valve or relay coils cause high switch-on currents, so add a contact protection relay (not included). Viscosity compensation keeps the set point valid for oils from 30 to 600 cSt (centistokes). The nickel-plated brass body with female thread is rated to 300 bar (≈4350 psi) and +120 °C (≈248 °F).
- Regular price
- £286.22
Description
Closes a normally open contact at an adjustable oil flow of 0.5 to 1.6 l/min. The potential-free reed contact carries no voltage of its own, so it can be wired directly to a PLC (programmable logic controller) input. It switches max. 60 VA, about 0.26 A at 230 V AC; valve or relay coils cause high switch-on currents, so add a contact protection relay (not included). Viscosity compensation keeps the set point valid for oils from 30 to 600 cSt (centistokes). The nickel-plated brass body with female thread is rated to 300 bar (≈4350 psi) and +120 °C (≈248 °F).
Pros:
- Adjustable set point from 0.5 to 1.6 l/min
- Potential-free reed contact, no supply voltage needed
- One set point for oils from 30 to 600 cSt
- DIN plug connector (EN 175301-803)
- Any mounting position, preferably with upward flow
Cons:
- Contact protection relay (not included) needed for valve or relay coils
- 50 mm clearance from iron parts needed; not for strong magnetic or induction fields
- Not suitable for liquids with solid or magnetic particles
