G1/2'' Float Level Switch 250mm Switch Position 16bar RLS-1000 - WIKA

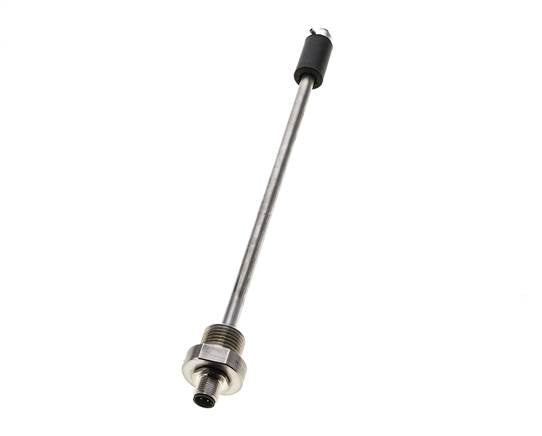

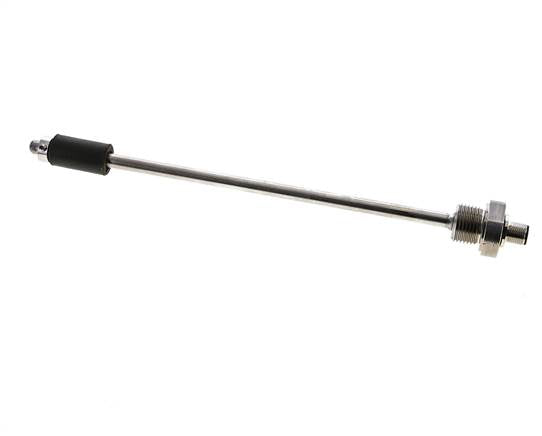

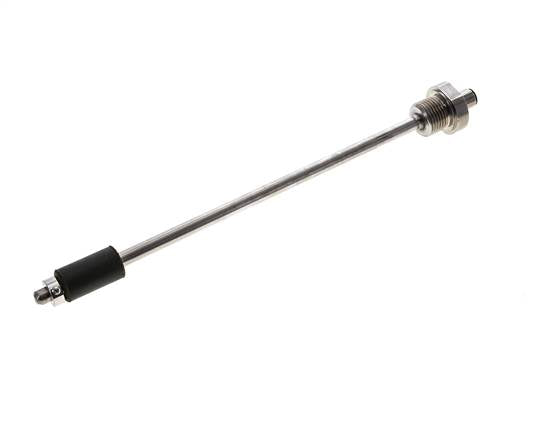

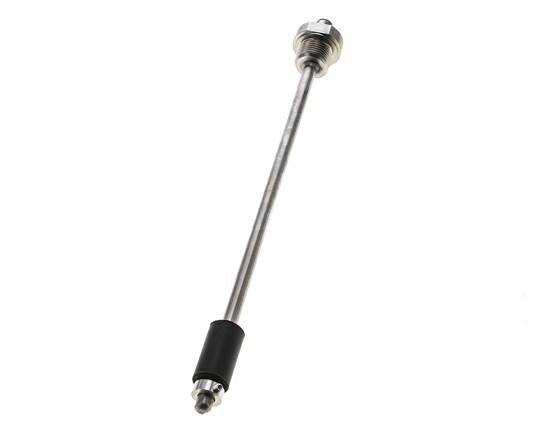

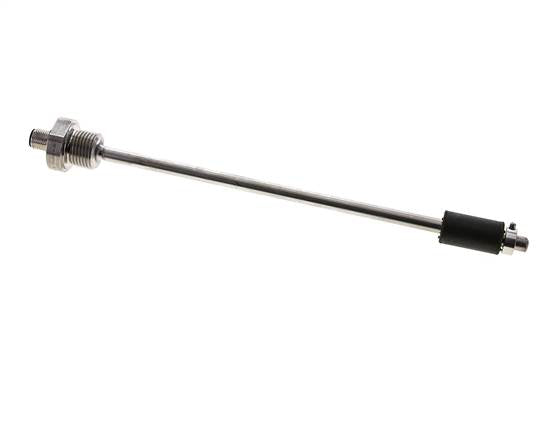

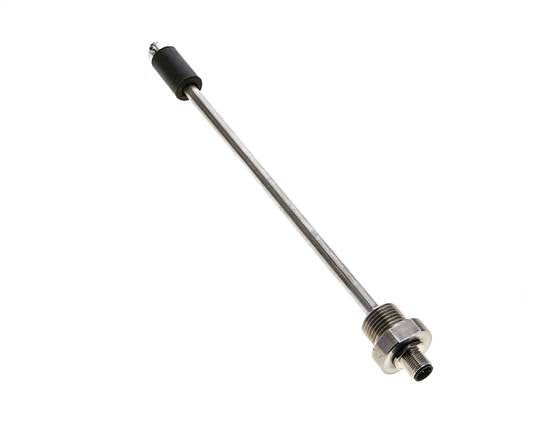

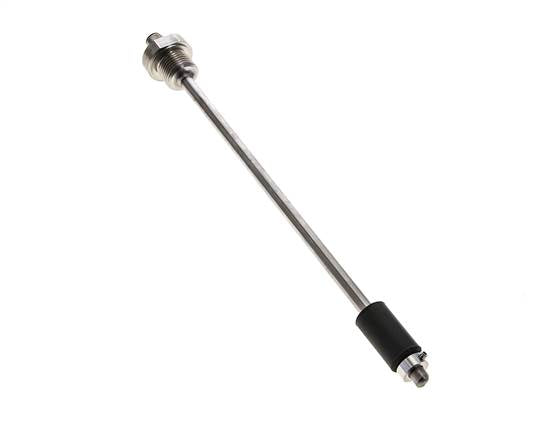

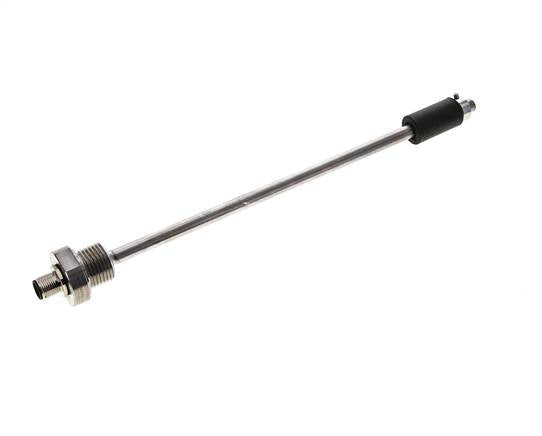

Compact float level switch with a fixed switch position at 250 mm and a 300 mm slide tube. It screws into the tank from above with a G1/2 BSPP male thread. One changeover contact rated 100 V AC 5 VA / 100 V DC 5 W, max 0.25 A, M12 connector (A-coded, 4-pin). Body and slide tube in stainless steel 1.4571, NBR float, max 16 bar, -30 to +80 °C, IP65.
- Regular price
- £129.09
Description
Screw it vertically into a G1/2 port in the top of the tank and connect it - there is nothing to adjust. The float slides on the slide tube and operates the changeover contact when the level passes 250 mm, measured from the mounting face on the tank. Suitable for water, hydraulic oil, machine oil and fuel, also when the medium flows slowly.
Pros:
- Very compact and robust design
- Body and slide tube in stainless steel
- Quick installation, no adjustment needed
Cons:
- Switch position is fixed - choose the length to suit the tank
- Max 0.25 A - switch larger loads through a relay
Series:
WIKA RLS-1000 compact float level switches with body and slide tube in stainless steel 1.4571, for demanding applications in hydraulics, machine building, plant engineering and tank construction. They screw into the tank from above and need no adjustment; the switch position is fixed. Versions with a G1/2 BSPP male thread have an M12 connector (A-coded, 4-pin), versions with G1 an angled plug connector to EN 175301-803 A. Switch positions from 100 to 450 mm in 50 mm steps; the slide tube is 50 mm longer than the switch position. One changeover contact, 100 V AC / DC, 5 VA / 5 W, max 0.25 A. NBR float Ø18 x 32 mm, max 16 bar, -30 to +80 °C, IP65. Media: water, hydraulic oil, machine oil, fuel and other liquids.
