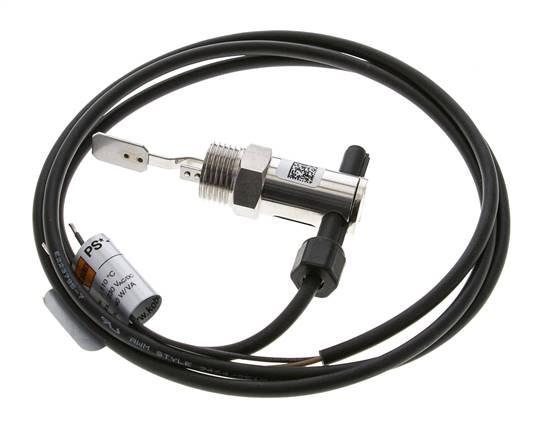

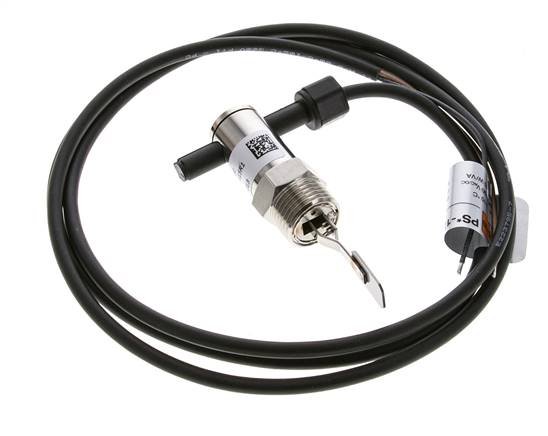

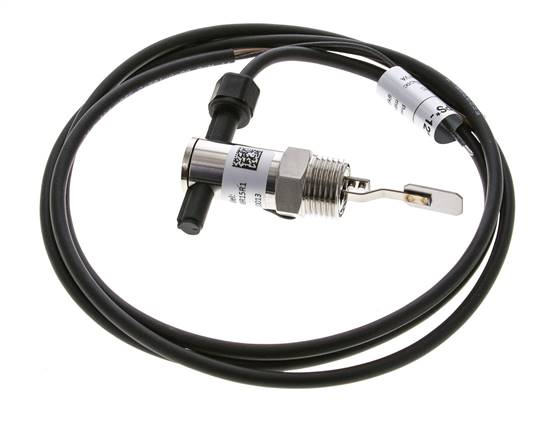

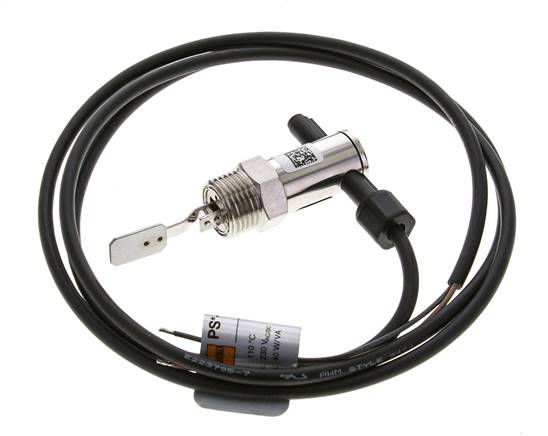

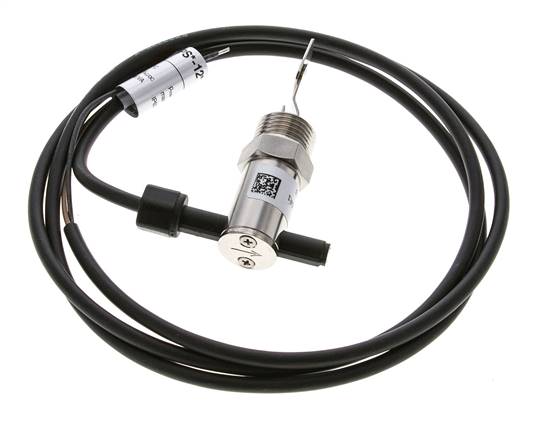

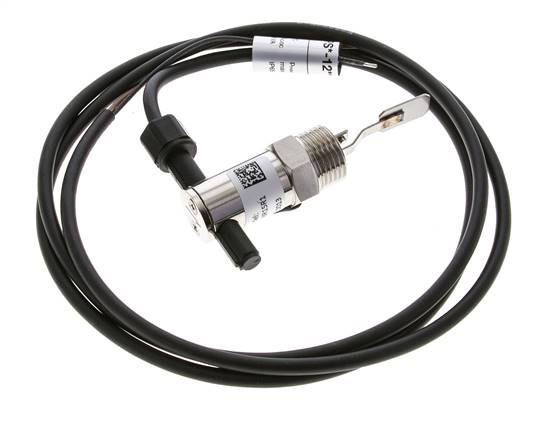

G1/2'' stainless insertion paddle flow switch DN 50-150 250 bar
Its G 1/2" male thread screws into a socket on a DN 50, 80, 100 or 150 pipe. The adjustable switch point depends on the pipe size: with water about 68 to 90 l/min in DN 50, 700 to 917 l/min in DN 150. Sliding the switch unit sets the point and selects normally open (factory setting) or normally closed. The reed contact outside the medium switches max. 40 VA: enough for a PLC (programmable logic controller) input; pumps need a relay. The stainless steel body with FKM seal is suitable for water, oils and coolants up to 250 bar (≈3630 psi) and +110 °C (≈230 °F). Replacement reed contact: M288B.
- Regular price
- £224.75
Description
Its G 1/2" male thread screws into a socket on a DN 50, 80, 100 or 150 pipe. The adjustable switch point depends on the pipe size: with water about 68 to 90 l/min in DN 50, 700 to 917 l/min in DN 150. Sliding the switch unit sets the point and selects normally open (factory setting) or normally closed. The reed contact outside the medium switches max. 40 VA: enough for a PLC (programmable logic controller) input; pumps need a relay. The stainless steel body with FKM seal is suitable for water, oils and coolants up to 250 bar (≈3630 psi) and +110 °C (≈230 °F). Replacement reed contact: M288B.
Pros:
- Adjustable switch point
- Normally open or normally closed operation, set on the switch unit
- No supply voltage needed
- Replaceable contact unit outside the medium
Cons:
- For thin liquids only; switch points are set for water, so check them on site with oil or coolant
- Low contact rating (40 VA); pumps need a relay
- Upright paddle mounting required, with flow along the arrow
