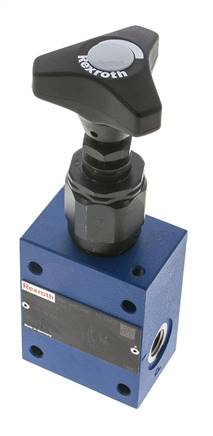

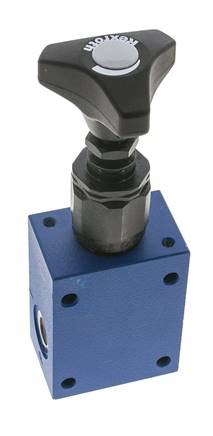

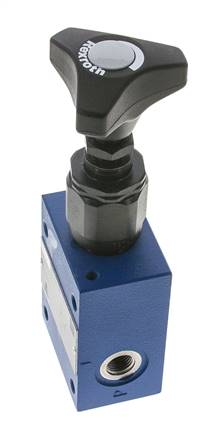

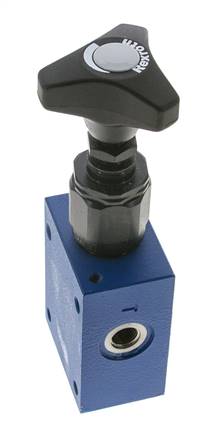

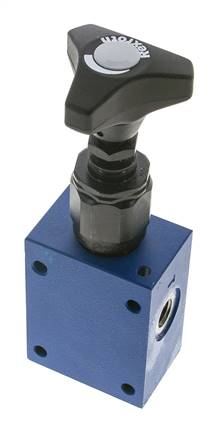

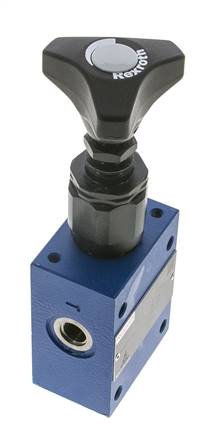

G1/4'' Hydraulic Inline Relief Valve 1-25bar 50l/min - Rexroth

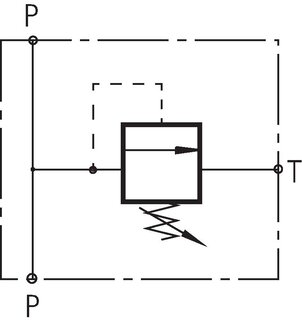

Hydraulic pressure relief valve for inline mounting, G1/4 BSPP. Adjustable from 1 to 25 bar with a hand wheel. Nominal flow 50 l/min. It limits the system pressure by relieving excess oil from P to T, for overpressure protection or continuous operation. Steel body and cartridge, NBR seals, for mineral-oil hydraulics from -30 to +80 °C.
- Regular price
- £433.41
Description

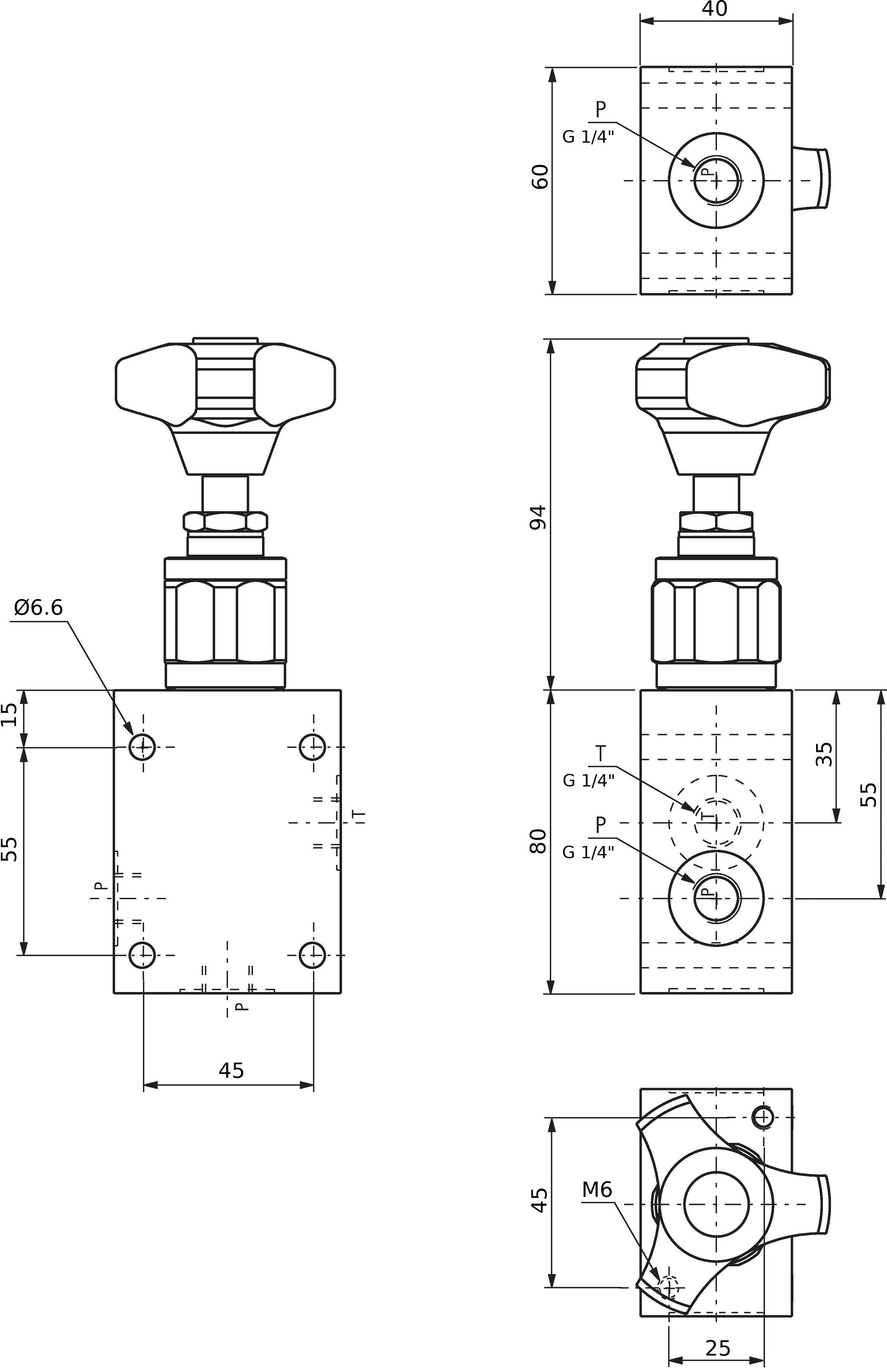

Turn the hand wheel to set the opening pressure between 1 and 25 bar; oil above the set pressure flows out at T back to tank. The same size is available with setting ranges up to 25, 50, 100, 200, 315 or 400 bar. Mount it with the M6 threaded holes or through the 6.6 mm holes in the body.
Pros:
- Set by hand with the hand wheel, no tools needed
- Robust steel body and cartridge
- For overpressure protection and continuous operation
Cons:
- Lowest setting measured at 5 l/min - at higher flow the lowest achievable pressure rises
- Adjustable up to 25 bar only - for higher settings, choose a higher pressure range
Series:
Bosch Rexroth DBDH inline hydraulic pressure relief valves with a steel body and a hand wheel, for limiting the system pressure in overpressure protection or continuous operation. The pressure line passes through the body, and oil above the set pressure is relieved to T. Nominal flows of 50 l/min (G1/4), 120 l/min (G1/2) and 250 l/min (G1), with setting ranges from 1-25 bar up to 1-400 bar; the minimum settings are measured at 5 l/min. Steel body and screw-in cartridge, plastic hand wheel and NBR seals, for mineral-oil hydraulic fluids from -30 to +80 °C. The valves mount with threaded holes or through holes in the body.
