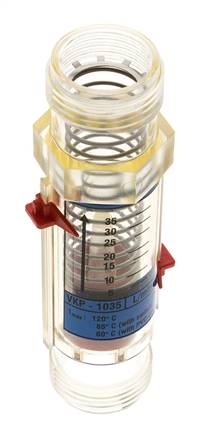

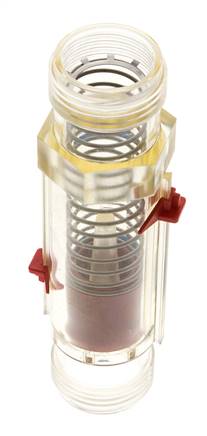

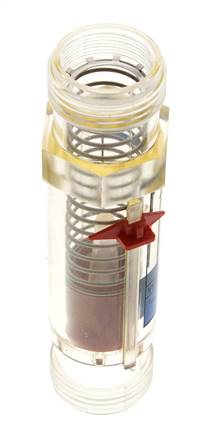

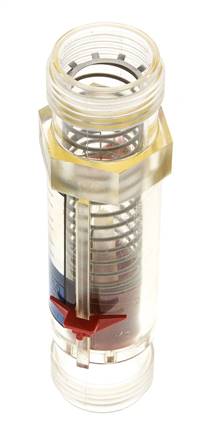

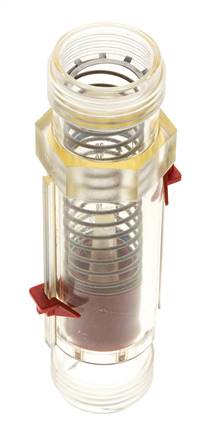

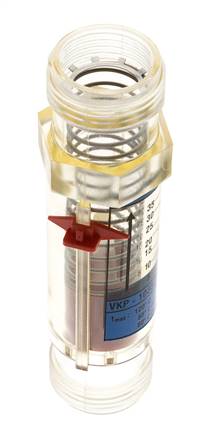

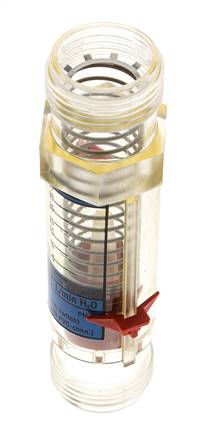

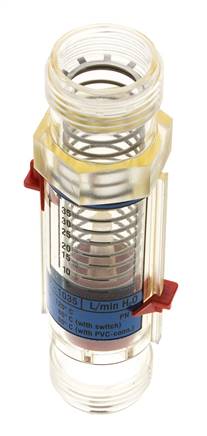

G1'' plastic variable area flow meter water 5-35 l/min
Shows water flow from 5 to 35 l/min directly on a scale, without power supply. The spring-loaded float moves inside a transparent body, so the reading at its top edge is visible at a glance. The scale is calibrated for water; for oil, choose the oil version of this meter or a metal meter for oils from 30 to 600 cSt (centistokes). It has a G 1" male thread, is rated up to 16 bar (≈230 psi) and +120 °C (≈248 °F), and suits only lightly contaminated liquids.
- Regular price
- £170.41
Description
Shows water flow from 5 to 35 l/min directly on a scale, without power supply. The spring-loaded float moves inside a transparent body, so the reading at its top edge is visible at a glance. The scale is calibrated for water; for oil, choose the oil version of this meter or a metal meter for oils from 30 to 600 cSt (centistokes). It has a G 1" male thread, is rated up to 16 bar (≈230 psi) and +120 °C (≈248 °F), and suits only lightly contaminated liquids.
Pros:
- Direct reading in l/min, no power supply or wiring
- Transparent body, float position visible at a glance
- Plastic body for water lines up to 16 bar
- Any mounting position
Cons:
- No electrical output; for a switching signal, choose a variable area flow switch
- Only for lightly contaminated liquids; particles can block the float
- Max. 16 bar; for higher pressure, choose a metal meter
