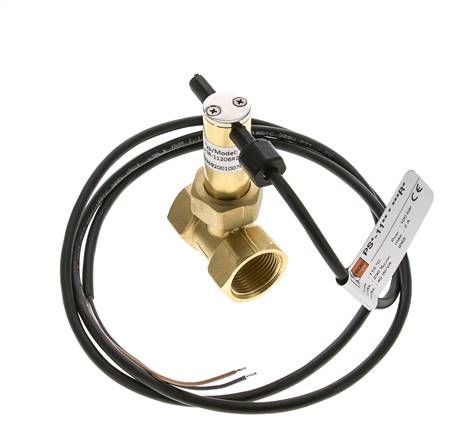

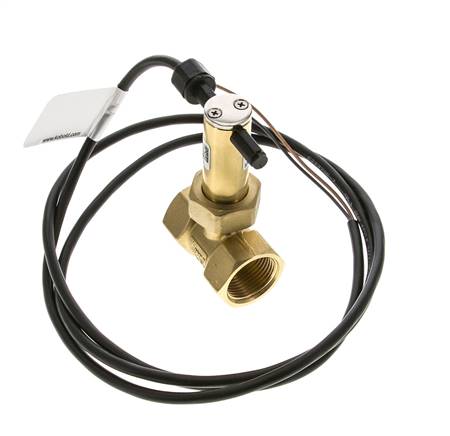

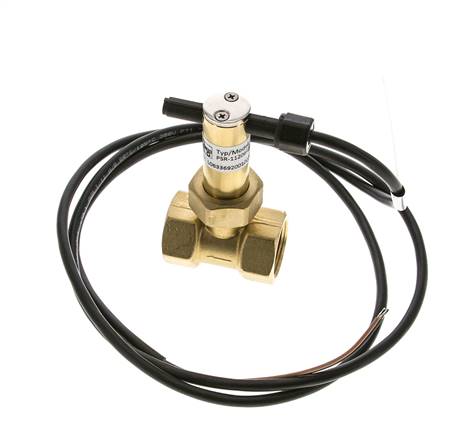

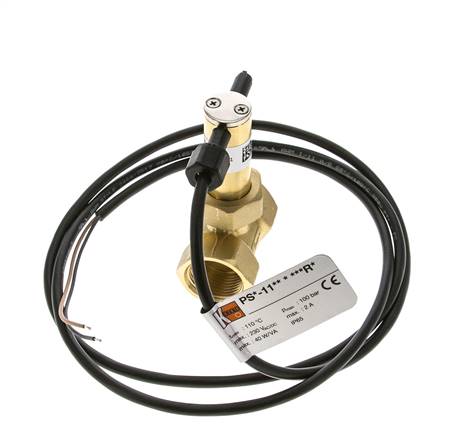

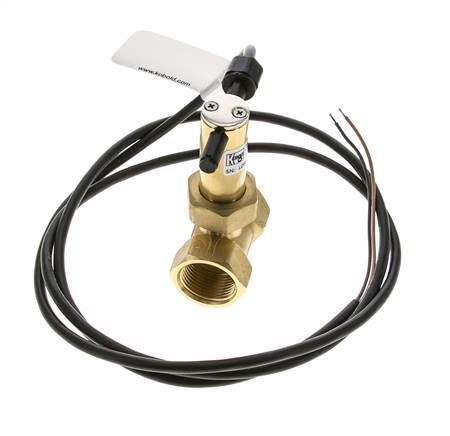

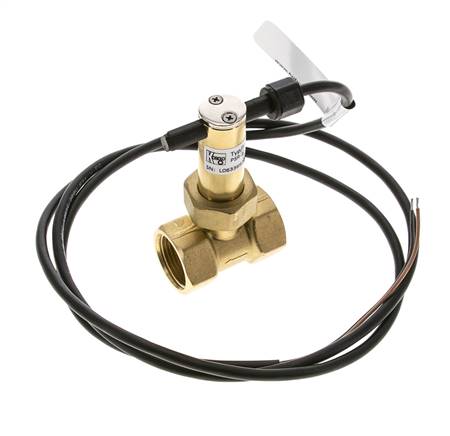

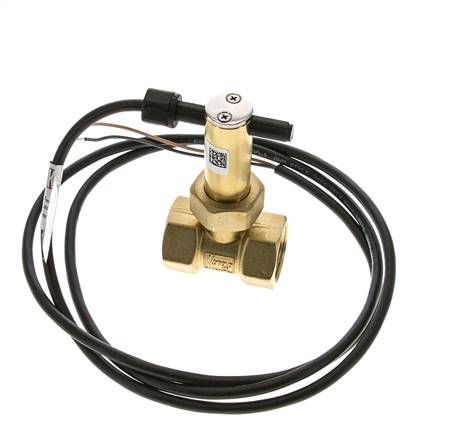

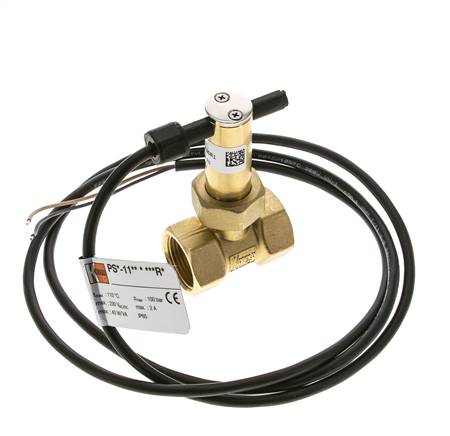

G3/4'' brass inline paddle flow switch 7.7-13.4 l/min 100 bar

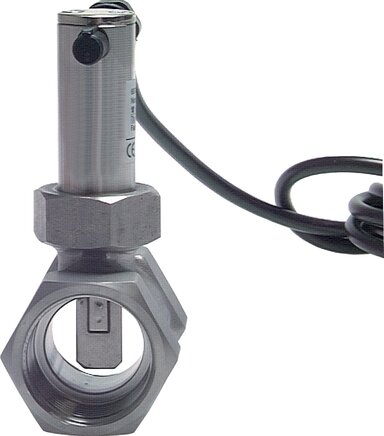

Switches at an adjustable point of about 7.7 to 13.4 l/min of rising water flow. The flow deflects the paddle; the contact switches back at a lower flow, so it does not chatter. Sliding the switch unit sets the point and selects normally open (factory setting) or normally closed. The reed contact outside the medium switches max. 40 VA: enough for a PLC (programmable logic controller) input; pumps need a relay. The brass body with NBR seal is suitable for water, oils and coolants up to 100 bar (≈1450 psi) and +70 °C (≈158 °F). Replacement reed contact: M288B.
- Regular price
- £132.43
Description
Switches at an adjustable point of about 7.7 to 13.4 l/min of rising water flow. The flow deflects the paddle; the contact switches back at a lower flow, so it does not chatter. Sliding the switch unit sets the point and selects normally open (factory setting) or normally closed. The reed contact outside the medium switches max. 40 VA: enough for a PLC (programmable logic controller) input; pumps need a relay. The brass body with NBR seal is suitable for water, oils and coolants up to 100 bar (≈1450 psi) and +70 °C (≈158 °F). Replacement reed contact: M288B.
Pros:
- Adjustable switch point from 7.7 to 13.4 l/min
- Normally open or normally closed operation, set on the switch unit
- No supply voltage needed
- Replaceable contact unit outside the medium
Cons:
- For thin liquids only; switch points are set for water, so check them on site with oil or coolant
- Low contact rating (40 VA); pumps need a relay
- Flow in one direction only
