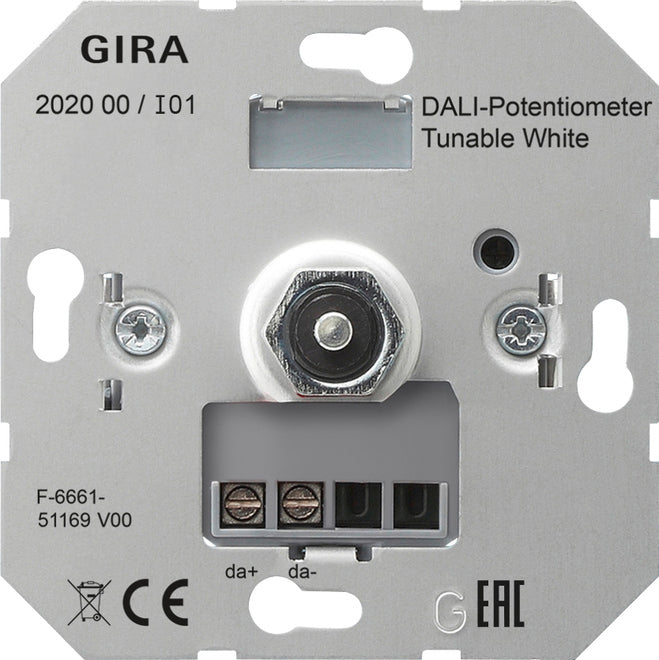

Gira Basic Unit Dimmer - 202000
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
E36YU
Brand:
Gira
Mfr. Part:
202000
Gira Basic unit dimmer, operating mode rotary/push button, load type other, composition basic element, flush-mounted, suitable for application with busy, protection category (IP) IP21.
Notice: This product will be discontinued in the future
Description
Specifications
Description
DALI Potentiometer Tunable White Features:
- The potentiometer is used for switching on and off, as well as adjusting brightness for lights with a DALI interface.
- It also allows adjustment of colour temperature for lights with DALI Device Type 8 (Colour Type: Colour Temperature) for Tunable White according to IEC 62386-209.
- A DALI power supply or a DALI potentiometer with an integrated power supply unit is required to create the DALI voltage, which must conform to the DALI specification (DIN IEC 60926).
- The unit can be operated simultaneously from several operating points, with communication via Broadcast.
- It is possible to store colour temperature limits and a basic brightness or a switch-on brightness.
Notes:
When selecting the DALI power supply, the number of DALI devices and the DALI potentiometer (always counts as 1 device) must be considered.
