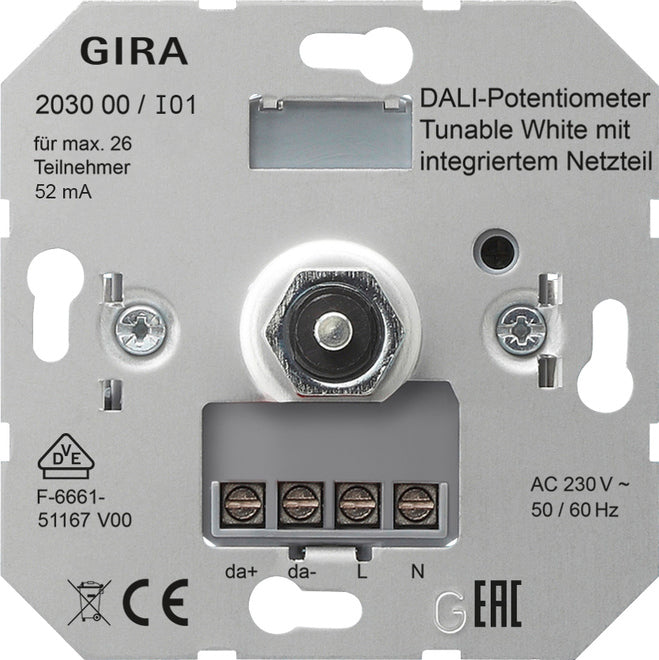

Gira Basic Unit Dimmer - 203000
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
E36YW
Brand:
Gira
Mfr. Part:
203000
Gira Basisunit dimmer, operating mode rotary/push button, load type other, composition basic element, flush-mounted, suitable for application with busy, rated voltage 230V, connection type screw terminal, protection category (IP) IP20, frequency 50 - 60Hz.
Notice: This product will be discontinued in the future
Description
Specifications
Description
DALI potentiometer Tunable White with integrated power supply unit.
Features:
- For switching on, off, and adjusting brightness for lights with a DALI interface.
- Adjustment of colour temperature for lights with DALI Device Type 8 (Colour Type: Colour Temperature) for Tunable White according to IEC 62386-209.
- Integrated power supply according to DALI specification (DIN IEC 60926) for 26 DALI devices.
- Parallel connection of up to 4 DALI potentiometers with integrated power supply unit to supply up to 104 DALI devices.
- Can be operated simultaneously from several operating points. Communication is via Broadcast.
- Colour temperature limits and a basic brightness, or a switch-on brightness, can be stored.
Notes:
When selecting the DALI power supply, the number of DALI devices and the DALI potentiometer (always counts as 1 device) must be considered.
