Gira G1 Multiple Bed Element Bus System - 206712

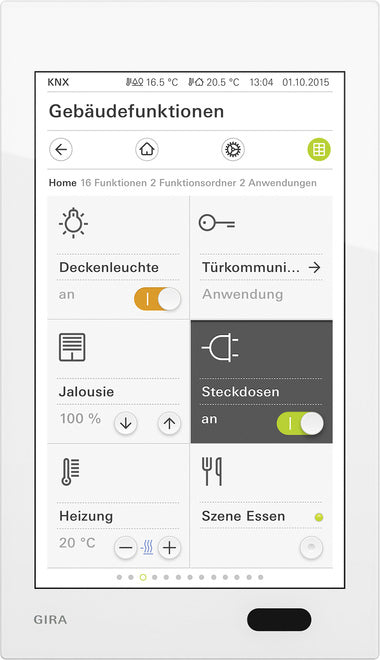

Gira G1 230 V, white glass. The Gira G1 is a multifunctional room-operating device for visualising and operating a variety of building functions. It can be used in the KNX system and Gira door communication system, or as a client. The range of functions depends on the firmware used. For details on the scope of functions, please refer to the Gira online catalogue and the technical documentation of the device.

Features:

• Operation is through a gesture-capable multi-touch display
• Connection and communication are via LAN or WLAN, depending on the variant
• Integrated speaker
• Integrated microphone with echo compensation

Potential applications and combinations:

• As a multifunctional room-operating device, the Gira G1 offers functions and function combinations such as:
  • KNX room-operating device
  • Video home station
  • Client for various systems and servers like the Gira HomeServer, eNet, X1 Alarm Connect security system
  • Integration of internet services

Properties as a KNX room-operating device:

• Intuitive user interface that can be adapted by the end user
• Switching and dimming (relative and absolute), dimming (including dimming RGB, RGBW, and Tunable White), blind and roller shutter control, value transmitter, and scene auxiliary unit
• Status display, display of date and time, display of indoor and outdoor temperature
• Up to 150 functions (six function folders or rooms with up to 25 functions each)
• Up to 125 seven-day timer with 10 switching times each
• Room temperature controller in combination with the temperature sensor module (available as an optional extra), or KNX devices for room temperature measurement, e.g. touch sensor 3 Komfort
• Operating modes: Comfort, standby, night, and frost or heat protection with their own temperature set point values (for heating and/ or cooling)
• Operating modes can be adapted individually
• A heating clock as seven-day timer with 28 switching times
• Room temperature controller auxiliary unit for controlling air conditioning systems (fan coil) in conjunction with a KNX gateway for air conditioning systems
• Supports KNX Data Secure and KNX IP Secure

Properties as video home station:

• Camera changeover: specific selection of connected colour cameras
• Control of the door opener
• Switching the ringtone on and off
• Ring tone can be selected from a choice of 10 melodies

Properties as a home station with SIP client:

• Client function for SIP external systems from e.g. Comelit, TCS, SCHÜCO DCS Touch, 2N
• Direct SIP calls or via registrar possible
• 64 internal calls possible, e.g. to the concierge
• Early media support for video image

Integration of internet services:

• Gira weather service: display of the weather forecast for up to five cities (internet connection required)

Gira G1 can also be used as a client for the HomeServer, eNet, X1, and Alarm Connect security system (firmware update required). When used as a client, the KNX room-operating device features are not available. For details on the scope of functions, refer to the Gira online catalogue and the technical documentation of the device.

Notes:

• Suitable for indoor use only
• Recommended mounting height: 150 cm above the floor
• Installation is performed on a deep device box (an electronics box is recommended for a LAN connection)
• Communication with the KNX installation is exclusively via the KNXnet IP standard
• An IP router for KNX must be used to connect the Gira G1 PoE to the KNX installation. Several Gira G1 units can be operated on one IP router for KNX
• To ensure reliable communication via WLAN, a Gira IP router for KNX (firmware version 3 and later) is required to connect the Gira G1 230 V or G1 24 V to the KNX installation. The Gira IP router for KNX (firmware version 3 and later) is specially equipped with the function "Reliable data communication". Several Gira G1 units can be operated on one Gira IP router for KNX (firmware version 3 and later)
• Commissioning in the KNX system from ETS 5.5 or higher
• Can be used as a home station in connection with the DCS-IP gateway
• When planning the system, observe the technical information on network planning in the device documentation
• The Gira Project Assistant (GPA) is required for firmware updates. The GPA is available free of charge in the Gira download area
• Using the timers requires either an internet connection to an NTP time server or a KNX clock (e.g. Gira weather station Plus 2074 00)
• The use of an electronics box is recommended for installing the flush-mounted connection module PoE
• A commercially available PoE-enabled switch or router or a PoE injector is required
