Gira System 55 Motion Sensor Element - 236603
This Sensotec from Gira is an active motion detector. The motion detector is suitable for automatic dimmed switching (0 to 100 %) of room lighting depending on movements far away and ambient brightness. A movement close by switches on the room lighting undimmed, for this a small hand movement is enough. This makes light switching very comfortable and easy, especially for people with physical limitations. Both the sensitivity of remote detection and the turn-on intensity of the room lighting are adjustable.
- Regular price
- £160.74
Description

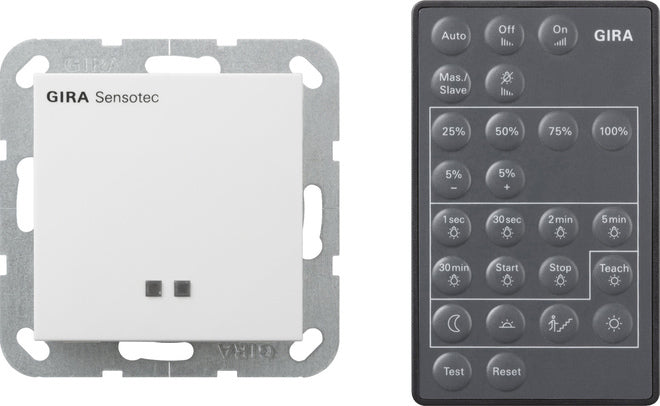

The Sensotec System 55 comes with a remote control. The device is glossy, pure white in appearance. The Sensotec employs the Doppler effect for detection, operating in the same way as traffic speed is measured. The system is also capable of detecting motion through non-shielding materials. This means, for example, that a single Sensotec device could cover sanitary facilities.
Features:
- Contactless switching prevents soiling, ultimately eliminating the risk of the user contaminating it with viruses or bacteria.
- Detection in both the close-up and long-range heavily depends on the reflecting surface, speed, and type of the object (for instance, person, animal, object, etc.).
- Metal frames can have an effect on the detection range.
- The detection range is extendable through the use of auxiliary units.
- Auxiliary input operation can be conducted using a rocker button.
- An IR remote control is required for start-up and to set various functions.
- Both the individual brightness value and the delay time can be adjusted, thanks to the teach function.
- The sensitivity of the far-field detection is adjustable.
- The device needs to be installed in a deep device box.
- The Sensotec complies with the guidelines outlined in VDI VDE 6008 Sheet 3.
- Essentially, the Sensotec is an active motion detector. It can detect motion in the detection range regardless of the temperature and switches on room lighting based on the ambient brightness.
- Motion in the close-up range switches on room lighting without dimming.
- The switch-on brightness of the room lighting for far-field detection can be adjusted.
Notes:
An IR remote control is mandatory during the initial start-up and for configuring various functions.
