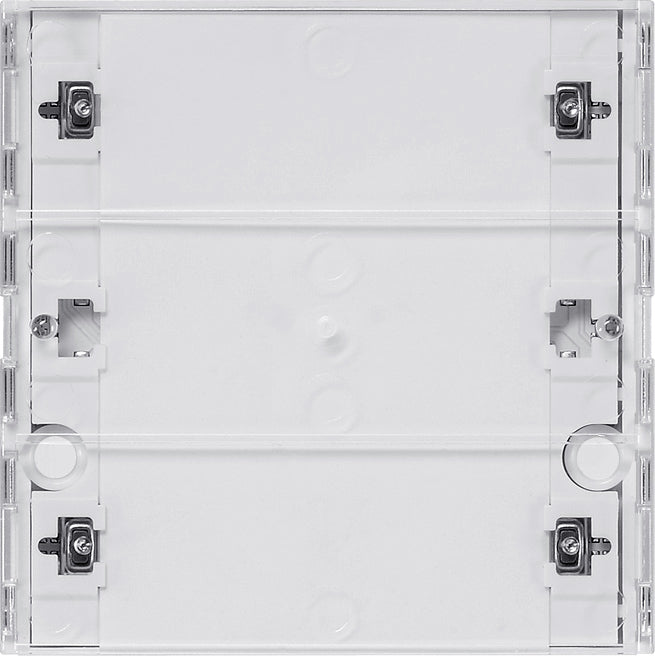

Gira System 55 Push Button Sensor Bus System - 510100
Gira System 55 push button sensor bus system, other, bus system KNX, bus system KNX radio frequency, 1 button, 1 operating points, protection type (IP) IP20, quality class other, with LED indication, flush-mounted, surface protection other.
- Regular price
- £124.51
Description
The RF pushbutton sensor is a 1-gang device for the KNX System 55 start-up rocker. This sensor can wirelessly transmit KNX telegrams when the button is pressed, depending on the parameter settings when the application program is loaded. Examples of these telegrams can include switching pressing, dimming, or blind control. Encoding functions like dimming encoders and scene auxiliary units can also be programmed.
Some of the features of this device include a confirmation function, transmission and status display through a two-colour LED (red and green). Each button has a separate two-stage display function. An optional status display is available by separate 1-bit status communication objects. The transmit and confirmation display can be deactivated. The pushbutton sensor can be attached to walls using screws or affixed to smooth or transparent surfaces using a mounting plate. You can plan, start-up, and set parameters of the project with ETS software (version 5 or higher). The device operates on batteries.
The "Switching" function operates with a rocker or button function. Both the commands for pressing and releasing can be parameterised (ON, OFF, CHANGE, no reaction). The "Dimming" function also uses a rocker function. The command when the rocker is pressed (right and left button) can be set in the parameters (lighter - ON, darker - OFF).
The "Blind" function uses a rocker function. The command when the rocker is pressed (right and left button) can be set in the parameters (ON, OFF, CHANGE). Additionally, the time between short and long-term command can be set in the parameters.
Both the "Value transmitter" and "Scene auxiliary unit" functions use a rocker function. The command when the rocker is pressed (right and left button) can be set in the parameters. These parameters can be values ranging from 0 to 255, 0 to 100% or a scene number. With a scene auxiliary unit, a memory function is possible.
Please note that batteries are consumables and must be replaced regularly. Make sure to follow the regulations on the disposal of used batteries. The pushbutton sensor comes with a program-neutral start-up rocker. The suitable rocker set for the design line must be ordered separately. Please be aware that the range can be reduced when using rocker sets or cover frames.
