Globe Valve Actuator Modulating 0-10V Fail-Safe 32mm 24 V AC/DC 2000N IP54 Belimo

Globe Valve Actuator Modulating 0-10V Fail-Safe 32mm 24 V AC/DC 2000N IP54 Belimo
Image may vary slightly
See specifications for accurate information.
Reference: V2VNM
Brand: Belimo
Mfr. Part: AVK24A-SZ-TPC

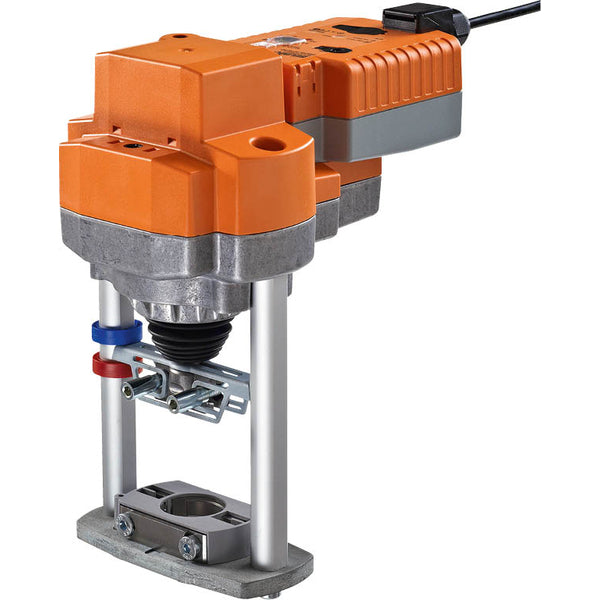

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 32 mm. The actuator delivers a force of 2000 N and can open/close the valve in 150 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator simultaneously positions the valve as the integrated capacitors are charged. In case of a power supply interruption, the valve automatically returns to the open/close position using stored electrical energy. The actuator has a durable plastic housing and has an IP54 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). The actuator is connected to the supply control using the terminals with cable. The actuator comes with a 1-meter power cable.

View all
Note: product cannot be returned
Regular price
£1313.65
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V2VNM, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 2 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 32 mm. The actuator delivers a force of 2000 N and can open/close the valve in 150 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator utilizes a 0-10 V control type and provides position feedback, enabling precise control of its movements and accurate monitoring of its position within the specified voltage range. The actuator simultaneously positions the valve as the integrated capacitors are charged. In case of a power supply interruption, the valve automatically returns to the open/close position using stored electrical energy. The actuator has a durable plastic housing and has an IP54 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). The actuator is connected to the supply control using the terminals with cable. The actuator comes with a 1-meter power cable.

The actuator is equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. During actuation, the stroke direction switch toggles the running direction in normal operation. However, it doesn't affect the preset fail-safe position. Manual override is possible with a push-button. The gear train disengages and the actuator decouples for the duration the button is pressed. Stroke adjustments can be made using a 5mm hexagon socket screw key inserted at the top of the actuator, with the stem extending when turned clockwise. The actuator can be directly mounted on the globe valve using form-fit hollow clamping jaws and it can be rotated 360° on the valve neck. The actuator can be controlled to a standard control signal of 0-10 V, simultaneously moving to a position determined by the control signal while the integrated capacitors are being charged. If the supply voltage is interrupted, the valve transitions to the predetermined fail-safe position using the stored electrical energy. The default factory setting retracts the actuator stem. When shipping valve-actuator combinations, the motion direction is set based on the valve's closing point. The capacitor actuators require a pre-charging period to bring the capacitors to a usable voltage level. This ensures that, in case of a power failure, the actuator can move from its current position into the fail-safe position at any time. The rotary knob fail-safe position allows for adjustment of the preferred fail-safe position. The adjustment range is based on the actuator's maximum stroke height. In case of power failure, the actuator moves to the chosen fail-safe position considering a factory set bridging time of 2 seconds. Post-factory delivery, the actuator is fully discharged and requires about 20 seconds of pre-charging before initial setup to attain the necessary voltage level in the capacitors.

Pros:

  • The actuator is equipped with a fail-safe feature
  • Modulating actuator with a control signal of 0-10 V
  • Manual override
  • The actuator is overload protected
  • Simple direct mounting
  • Visual position indicator

Cons:

  • The time to open/close of 150 s is slow for some applications
