Globe Valve Actuator Modulating 2-10V 65mm 24 V AC/DC 12000N IP65 Belimo

Globe Valve Actuator Modulating 2-10V 65mm 24 V AC/DC 12000N IP65 Belimo

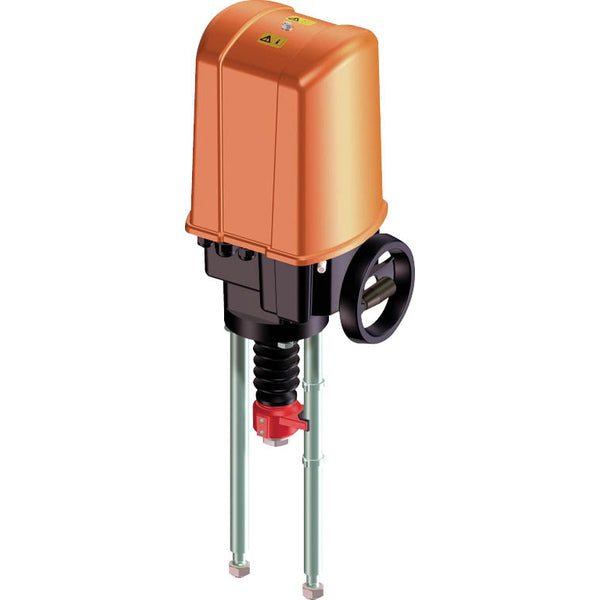

Image may vary slightly
See specifications for accurate information.
Reference: V2VQX
Brand: Belimo
Mfr. Part: GV12-24-SR-T

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 65 mm. The actuator delivers a force of 12000 N and can open/close the valve in 82 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator is configured with a 2-10 V control type and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator has a durable plastic housing and has an IP65 protection rating. This actuator can operate within ambient temperatures between 20 and 70 °C (68 and 158 °F). A power cable can be easily attached via the terminal block.

View all
Note: product cannot be returned
Regular price
£5473.23
excl VAT

In stock +14 days On request On request
For a higher quantity than 0 of product V2VQX, the lead time of the order will increase by 14 days. The item is not online available in your chosen quantity, there are 1 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 65 mm. The actuator delivers a force of 12000 N and can open/close the valve in 82 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator is configured with a 2-10 V control type and offers position feedback, ensuring precise control over its operation and accurate monitoring of its position within the designated voltage range. The actuator has a durable plastic housing and has an IP65 protection rating. This actuator can operate within ambient temperatures between 20 and 70 °C (68 and 158 °F). A power cable can be easily attached via the terminal block.

The actuator is protected against short circuits, polarity reversal, and overloading. In a de-energized state or when the motor is switched off, upward and downward movements can be performed by pressing and turning the handwheel. The stroke is mechanically indicated on the bracket, and the indicator adjusts itself automatically. The actuator is factory-mounted onto the corresponding valve. The power connection is made with form closure, and power transmission is achieved through a torsion-secured coupling. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • Modulating actuator with a control signal of 2-10 V
  • Manual override
  • Simple direct mounting
  • Visual position indicator

Cons:

  • The time to open/close of 82 s is slow for some applications
