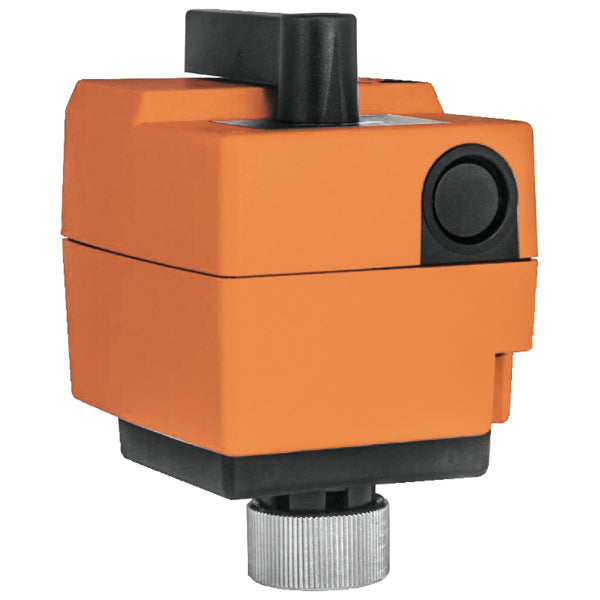

Globe Valve Actuator Modulating 5.5mm 24 V AC/DC 500N IP40 Belimo

Globe Valve Actuator Modulating 5.5mm 24 V AC/DC 500N IP40 Belimo
Image may vary slightly
See specifications for accurate information.
Reference: V2W8Y
Brand: Belimo
Mfr. Part: NRYD24-SR-SI

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 5.5 mm. The actuator delivers a force of 500 N and can open/close the valve in 35 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). This actuator is compatible with valves. The actuator comes with a 1-meter power cable.

View all
Note: product cannot be returned
Regular price
£264.88
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads

This Belimo linear electrical actuator is designed for controlling globe valves. The stroke length is 5.5 mm. The actuator delivers a force of 500 N and can open/close the valve in 35 seconds. This actuator requires a supply voltage of 24 V AC/DC and has a visual positioning indicator to clearly see the valve position. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). This actuator is compatible with valves. The actuator comes with a 1-meter power cable.

The actuator is equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator can be controlled with a standard control signal of 0-10 V and moves to the position dictated by the control signal. Voltage measurement is employed both for visually displaying the valve position within the 0.5% to 100% range and as a control signal for other actuators. The rotation angle can be adjusted with mechanical end stops.

Pros:

  • Modulating actuator with a control signal of 0-10 V
  • Manual override
  • The actuator is overload protected
  • Simple direct mounting
  • Visual position indicator

Cons:

  • The time to open/close of 35 s is slow for some applications
