Hager ST Bell Transformer - ST312

Notice: This product is discontinued

Discontinued

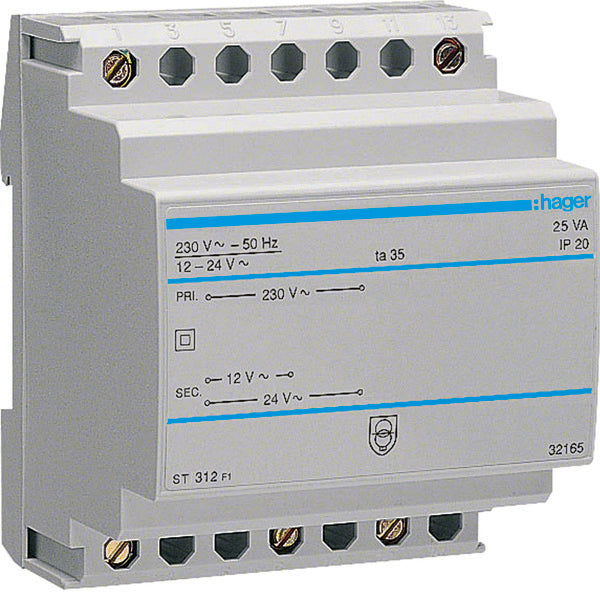

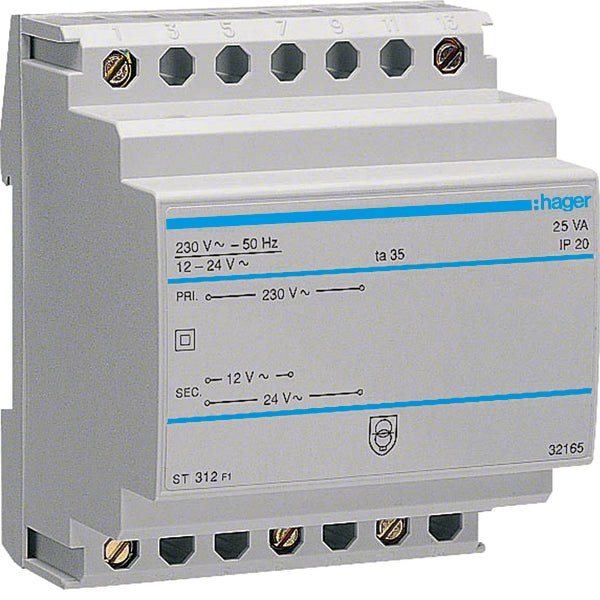

Hager ST Bell Transformer - ST312
Hager ST Bell Transformer - ST312
Image may vary slightly
See specifications for accurate information.
Reference: E28HR
Brand: Hager
Mfr. Part: ST312

This ST safety transformer is capable of converting the voltage of 230 V, which is dangerous to humans, into a voltage of 12 - 24V. The safety transformer is short-circuit proof. Hager ST safety transformers are available in several varieties.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

This ST safety transformer is capable of converting the voltage of 230 V, which is dangerous to humans, into a voltage of 12 - 24V. The safety transformer is short-circuit proof. Hager ST safety transformers are available in several varieties.

Downloads

Specifications

Primary voltage (V)
230
Secondary voltage 1 (V)
12
Secondary voltage 2 (V)
24
Secondary amperage 1 (A)
2.08
Secondary amperage 2 (A)
1.04
Max. output power (W)
25
Max. output current (A)
3
Max. power loss (W)
1.8
Type of transformer
Safety transformer
Surface mounting
Yes
Flush-mounted installation
No
Modular version
Yes
Length (mm)
85
Width (mm)
The product's width without packaging.
70
Height (mm)
The product's height without packaging.
58
Width in number of modular spacings
4
Short-circuit protected
Yes
Temperature protection
Yes
With on/off switch
No
