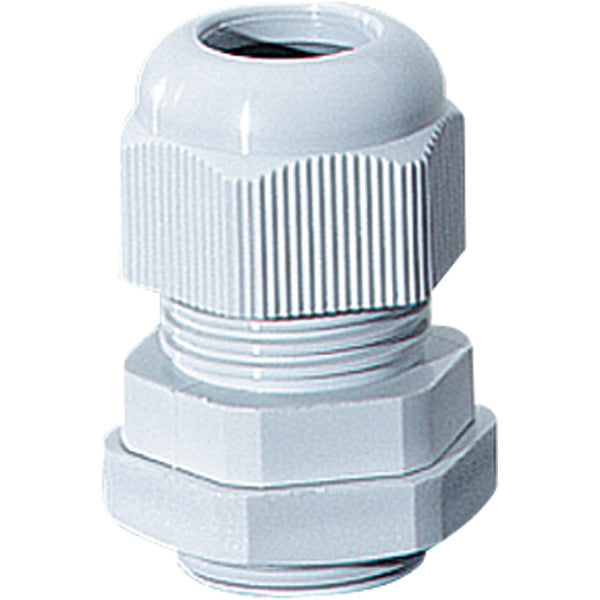

Hensel Cable Gland IP66 IP67 IP69 M20 Grey - AKM 20 [20 Pieces]
![Hensel Cable Gland IP66 IP67 IP69 M20 Grey - AKM 20 [20 Pieces]](http://tameson.co.uk/cdn/shop/files/e3gxc-00.974c7f0a_aeeedc7b-0c79-4867-8c57-1e6f38b23b00.jpg?v=1716102904)
![Hensel Cable Gland IP66 IP67 IP69 M20 Grey - AKM 20 [20 Pieces]](http://tameson.co.uk/cdn/shop/files/e3gxc-00.974c7f0a_aeeedc7b-0c79-4867-8c57-1e6f38b23b00.jpg?height=232&v=1716102904&width=232)
This is a grey Hensel cable/bushing right-angle swivel entry made from metric threaded plastic, with a nominal metric thread size of Pg 20 and 1.5mm pitch. The thread length is 8mm, with a key width of 24mm and a hexagonal width of 26.5mm. The product is a quality class PA polyamide cable gland with strain relief and locknut. It passes the glow-wire test according to IEC 60 695-2-11 at 960°C. This item is suitable for both interior and exterior environments with a max operating temperature of 70°C and min of -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Compliant with IEC 60529, providing IP 66/IP 67/IP 69 protection, it is flame-resistant, self-extinguishing and halogen and silicone-free.
Contains 20 pieces
- Regular price
- £67.72
Description
This is a grey Hensel cable/bushing right-angle swivel entry made from metric threaded plastic, with a nominal metric thread size of Pg 20 and 1.5mm pitch. The thread length is 8mm, with a key width of 24mm and a hexagonal width of 26.5mm. The product is a quality class PA polyamide cable gland with strain relief and locknut. It passes the glow-wire test according to IEC 60 695-2-11 at 960°C. This item is suitable for both interior and exterior environments with a max operating temperature of 70°C and min of -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Compliant with IEC 60529, providing IP 66/IP 67/IP 69 protection, it is flame-resistant, self-extinguishing and halogen and silicone-free.
Contains 20 pieces
