Hensel Cable Gland IP66/IP67/IP69 M50 Grey With Strain Relief - AKM 50 [5 Pieces]

Hensel Cable Gland IP66/IP67/IP69 M50 Grey With Strain Relief - AKM 50 [5 Pieces]
Hensel Cable Gland IP66/IP67/IP69 M50 Grey With Strain Relief - AKM 50 [5 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3GXG-X5
Brand: Hensel
Mfr. Part: AKM 50

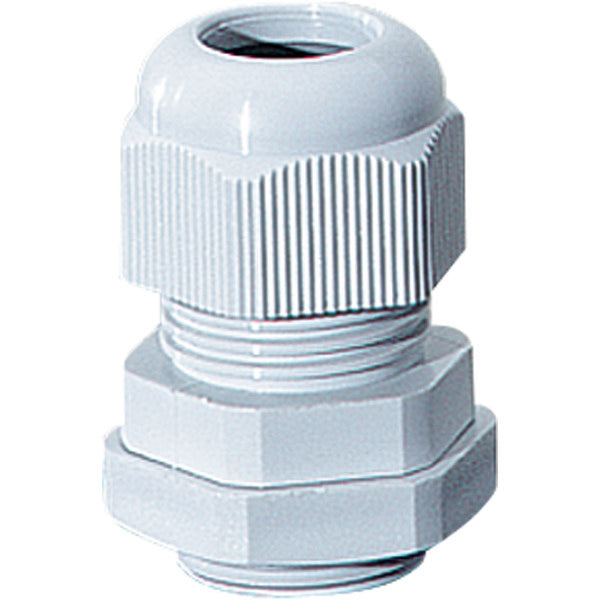

This Hensel cable gland is made of hard-wearing polyamide (PA) and accommodates a cable diameter of 27-35mm. It has a straight design, featuring metric screw threads of nominal size metric/Pg 50, thread pitch of 1.5mm, and thread length of 10mm with a hexagonal angle size of 60mm and span of 55mm. The gland includes a strain relief and locknut, and passed a glow wire test per IEC 60 695-2-11 at 960°C. Suitable for both indoor and outdoor installation, it can operate in temperatures ranging from -25°C to 70°C and relative humidity of 50% at 40°C or 100% at 25°C. It offers protection level of IP 66 / IP 67 / IP 69 as per IEC 60529, and is flame retardant, self-extinguishing, and free of halogen and silicone. The gland is grey, conforming to RAL 7035.

Contains 5 pieces

View all
£126.86
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00 (excl VAT)
Expected delivery in 4 - 5 business days

Customers rate us: 4.84 / 5

544 reviews at TrustedShops

Description
Specifications

Description

This Hensel cable gland is made of hard-wearing polyamide (PA) and accommodates a cable diameter of 27-35mm. It has a straight design, featuring metric screw threads of nominal size metric/Pg 50, thread pitch of 1.5mm, and thread length of 10mm with a hexagonal angle size of 60mm and span of 55mm. The gland includes a strain relief and locknut, and passed a glow wire test per IEC 60 695-2-11 at 960°C. Suitable for both indoor and outdoor installation, it can operate in temperatures ranging from -25°C to 70°C and relative humidity of 50% at 40°C or 100% at 25°C. It offers protection level of IP 66 / IP 67 / IP 69 as per IEC 60529, and is flame retardant, self-extinguishing, and free of halogen and silicone. The gland is grey, conforming to RAL 7035.

Contains 5 pieces
