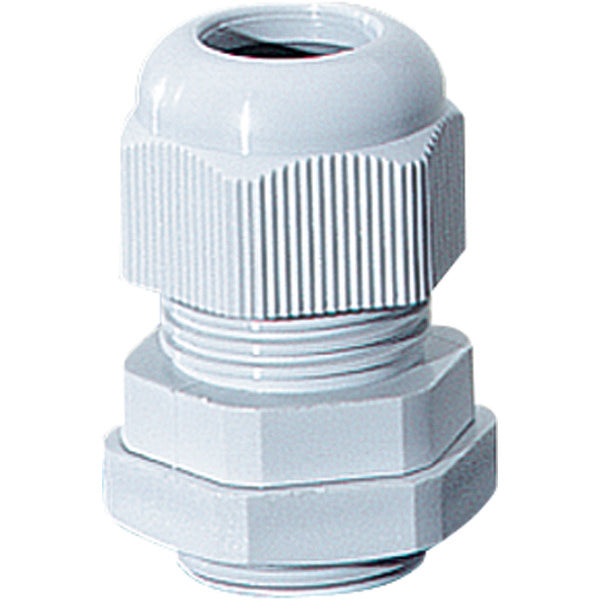

Hensel Cable Gland IP66/IP67/IP69 M63 With Strain Relief - AKM 63 [4 Pieces]

Hensel Cable Gland IP66/IP67/IP69 M63 With Strain Relief - AKM 63 [4 Pieces]
Hensel Cable Gland IP66/IP67/IP69 M63 With Strain Relief - AKM 63 [4 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3GXH-X4
Brand: Hensel
Mfr. Part: AKM 63

The Hensel cable gland is designed for a cable diameter of 35 - 42mm, with a thread type metric, nominal thread size metric/Pg 63, thread pitch of 1.5mm, thread length of 10mm, key width of 68mm, and hexagon angle size of 74.7mm. It has a straight plastic entry and is gray. The quality class is polyamide (PA). It features strain relief and a locknut, and is compliant with glow wire test as per IEC 60 695-2-11 960°C. Suitable for indoor and outdoor installation, it can withstand temperatures of -25°C to 70°C and humidity levels up to 50% at 40°C or 100% at 25°C. Its protection grade is according to IEC 60529 IP 66 / IP 67 / IP 69. It is flame-retardant, self-extinguishing, and free from halogens and silicones. The color is gray, RAL 7035. It is manufactured by Hensel, type AKM and size M63.

Contains 4 pieces

View all
Note: product cannot be returned
£144.89
excl VAT
In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 70 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Hensel cable gland is designed for a cable diameter of 35 - 42mm, with a thread type metric, nominal thread size metric/Pg 63, thread pitch of 1.5mm, thread length of 10mm, key width of 68mm, and hexagon angle size of 74.7mm. It has a straight plastic entry and is gray. The quality class is polyamide (PA). It features strain relief and a locknut, and is compliant with glow wire test as per IEC 60 695-2-11 960°C. Suitable for indoor and outdoor installation, it can withstand temperatures of -25°C to 70°C and humidity levels up to 50% at 40°C or 100% at 25°C. Its protection grade is according to IEC 60529 IP 66 / IP 67 / IP 69. It is flame-retardant, self-extinguishing, and free from halogens and silicones. The color is gray, RAL 7035. It is manufactured by Hensel, type AKM and size M63.

Contains 4 pieces

Downloads

Specifications

Thread type
Metric
Nom. thread size metric/PG
63
Pitch thread (mm)
1.5
Thread length (mm)
10
Wrench width (mm)
68
Hexagon angular dimension (mm)
74.7
