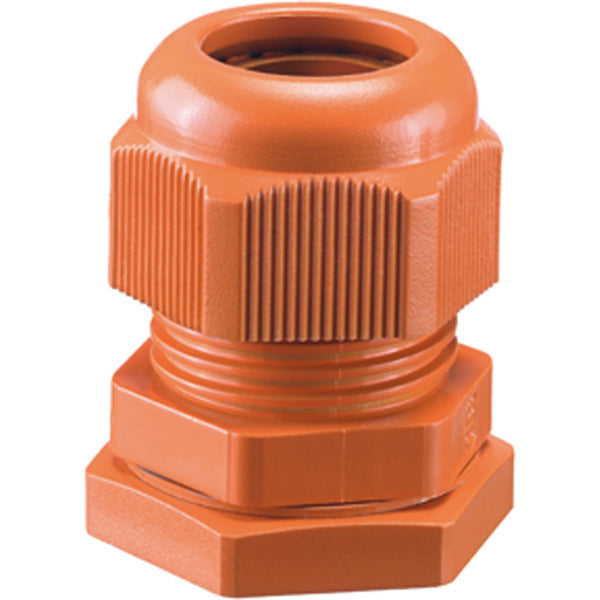

Hensel Cable Gland IP66 M25 Orange Glow Wire Test - AKMF 25 [20 Pieces]
The Hensel ENYCASE cable gland features a straight cable / pipe entry, is made of plastic and includes a metric thread type, with a nominal thread size metric / Pg 25, thread pitch 1.5mm and thread length 8mm, operable with 29mm width key, a hexagonal corner size 32mm, and suitable for a cable diameter of 11-17mm. Fabricated with polyamide (PA) of high quality; this gland also comes with strain relief and a locknut. The product passed the IEC 60 695-2-11 960°C glow-wire test, and is good for indoor and outdoor installation, with an ambient temperature range of -25°C to 70°C, and 50% relative humidity at 40°C or 100% at 25°C. it offers protection degree as per IEC 60529 IP 66, it's flammability-resistant, self-extinguishing, halogen-free and silicone-free, and available in orange (RAL 2003). Product type is AKMF M25.
Contains 20 pieces
- Regular price
- £91.88
Description
The Hensel ENYCASE cable gland features a straight cable / pipe entry, is made of plastic and includes a metric thread type, with a nominal thread size metric / Pg 25, thread pitch 1.5mm and thread length 8mm, operable with 29mm width key, a hexagonal corner size 32mm, and suitable for a cable diameter of 11-17mm. Fabricated with polyamide (PA) of high quality; this gland also comes with strain relief and a locknut. The product passed the IEC 60 695-2-11 960°C glow-wire test, and is good for indoor and outdoor installation, with an ambient temperature range of -25°C to 70°C, and 50% relative humidity at 40°C or 100% at 25°C. it offers protection degree as per IEC 60529 IP 66, it's flammability-resistant, self-extinguishing, halogen-free and silicone-free, and available in orange (RAL 2003). Product type is AKMF M25.
Contains 20 pieces
