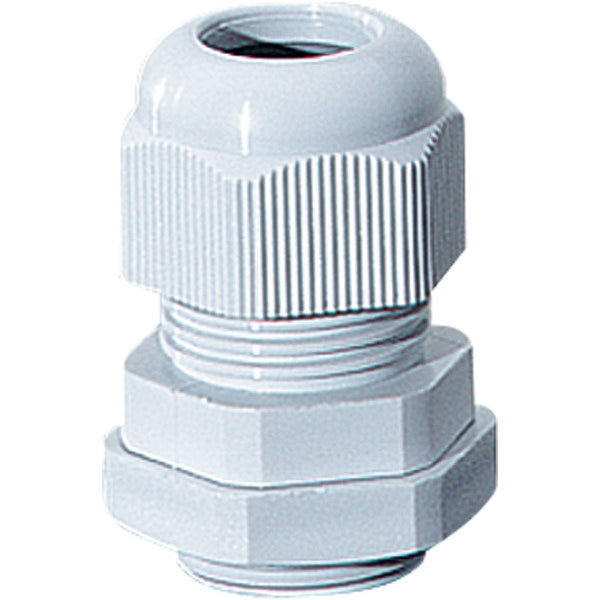

Hensel Cable Gland IP67 M40 Grey With Filament Test - AKM 40 [10 Pieces]
The Hensel cable gland features a straight cable/tube entry made of gray plastic with a metric type of thread. The nominal thread size is metric/Pg 40, the thread pitch is 1.5mm, and the thread length is 10mm. The item also has a key width of 46mm and a hexagonal angle size of 50.5mm, suitable for a cable diameter of 19 - 28mm. The quality class is polyamide (PA). The cable gland comes with strain relief and counter nut. It passes glow-wire test per IEC 60 695, offering an operating temperature of up to 70°C and as low as -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Its IP protection is rated at IP66/IP67/IP69 per IEC 60529. The color is gray and manufactured from flame-retardant, self-extinguishing PA-polyamide, free from halogens and silicones. Manufactured by Hensel, model AKM, size M40.
Contains 10 pieces
- Regular price
- £113.97
Description
The Hensel cable gland features a straight cable/tube entry made of gray plastic with a metric type of thread. The nominal thread size is metric/Pg 40, the thread pitch is 1.5mm, and the thread length is 10mm. The item also has a key width of 46mm and a hexagonal angle size of 50.5mm, suitable for a cable diameter of 19 - 28mm. The quality class is polyamide (PA). The cable gland comes with strain relief and counter nut. It passes glow-wire test per IEC 60 695, offering an operating temperature of up to 70°C and as low as -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Its IP protection is rated at IP66/IP67/IP69 per IEC 60529. The color is gray and manufactured from flame-retardant, self-extinguishing PA-polyamide, free from halogens and silicones. Manufactured by Hensel, model AKM, size M40.
Contains 10 pieces
