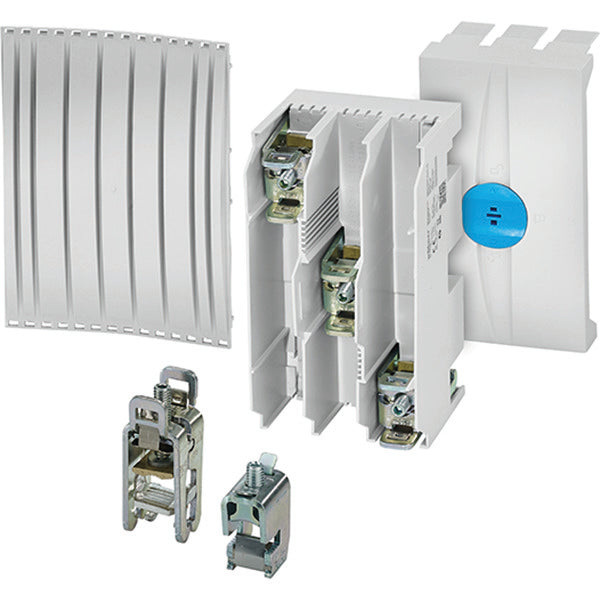

Hensel Connection Module 35-150 MM2 5 Pole - AM RK 150
The Hensel ENYSTAR connection terminal for busbars, with a busbar thickness of 5mm and width of 12mm, offers a 5-pole connection mod with a maximum of 250A and has a clamp width of 144mm. It's suitable for round gel and sector gel connection, a maximum conductor cross-section of 150mm², and a maximum nominal operating current Ie of 250A. This distribution box can handle up to 250 A and comes with a door and a combinable cabinet system compliant with IEC 61 439-3 for wall installation. It's designed for outdoor placement under weather conditions, made of impact resistant polycarbonate, halogen and silicone-free, and colored RAL 7035. The doors are sealable and the devices are operated behind them. It has fire behavior in accordance with IEC 60 695-2-11 glowing wire test 960 °C. The protective measure is double insulated (protection class II). It accommodates conductor cross-sections from 35 to 150 mm².
- Regular price
- £123.41
Description
The Hensel ENYSTAR connection terminal for busbars, with a busbar thickness of 5mm and width of 12mm, offers a 5-pole connection mod with a maximum of 250A and has a clamp width of 144mm. It's suitable for round gel and sector gel connection, a maximum conductor cross-section of 150mm², and a maximum nominal operating current Ie of 250A. This distribution box can handle up to 250 A and comes with a door and a combinable cabinet system compliant with IEC 61 439-3 for wall installation. It's designed for outdoor placement under weather conditions, made of impact resistant polycarbonate, halogen and silicone-free, and colored RAL 7035. The doors are sealable and the devices are operated behind them. It has fire behavior in accordance with IEC 60 695-2-11 glowing wire test 960 °C. The protective measure is double insulated (protection class II). It accommodates conductor cross-sections from 35 to 150 mm².
