Reference: E3ZTF-X2
Brand: Hensel
Mfr. Part: DK 0100 G

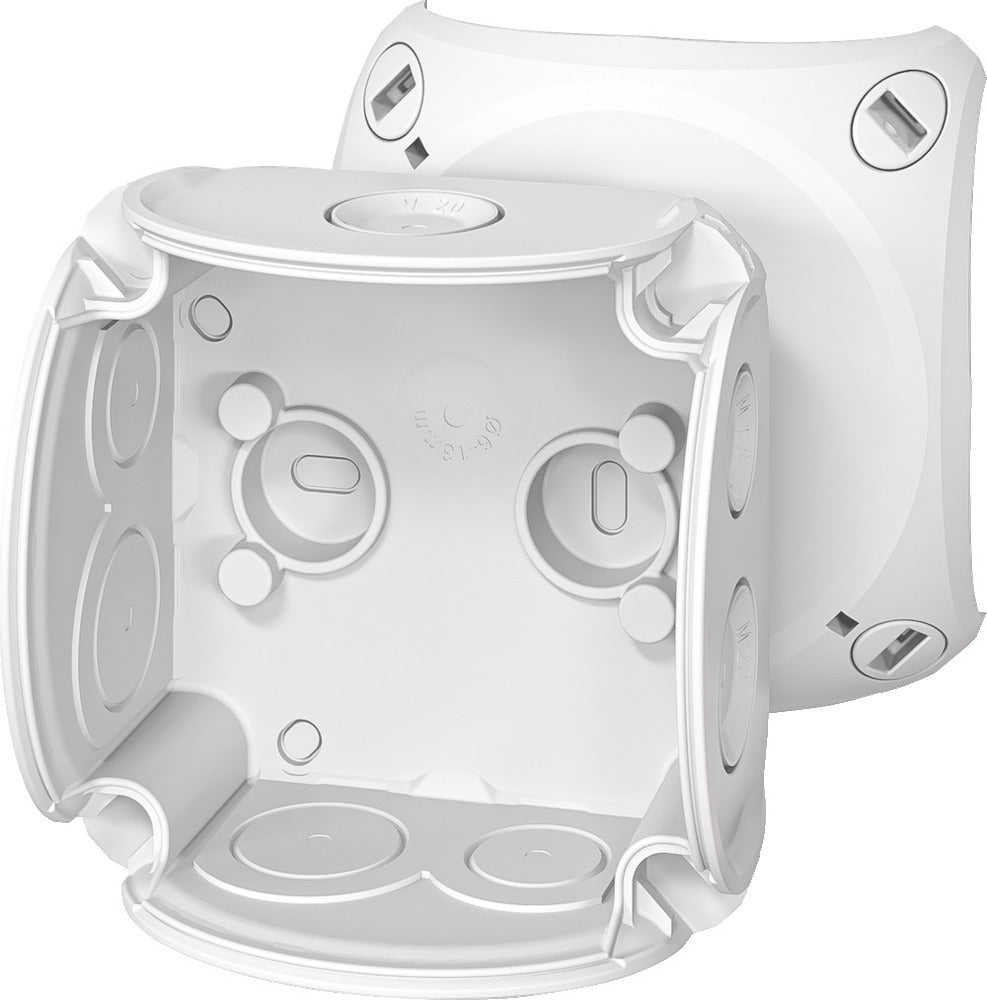

Professional IP66-rated junction box designed for indoor and protected outdoor installations. Features elastic membrane cable entries (3x M16, 4x M20) and quarter-turn quick-release lid closures. Constructed from halogen-free thermoplastic with operating temperature range -25°C to +70°C. Box dimensions: 84x84x55mm. UL 94 V-2 certified with 750°C glow wire test rating. Includes wall mounting brackets and gray RAL 7035 finish.

Contains 2 pieces

View all
£10.12
excl VAT
In stock Ships in 39d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 39 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 41 - 43 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Professional IP66-rated junction box designed for indoor and protected outdoor installations. Features elastic membrane cable entries (3x M16, 4x M20) and quarter-turn quick-release lid closures. Constructed from halogen-free thermoplastic with operating temperature range -25°C to +70°C. Box dimensions: 84x84x55mm. UL 94 V-2 certified with 750°C glow wire test rating. Includes wall mounting brackets and gray RAL 7035 finish.

Pros:

  • High IP66 protection rating for harsh environments
  • Tool-free quarter-turn quick-release lid system
  • Multiple membrane cable entries for flexible installation
  • Wide operating temperature range (-25°C to +70°C)

Downloads

Compliance and Certification (EN)
pdf
Download

Specifications

Max. conductor cross section
2.5 mm²
Equipped with
None
Shape
Square
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
Inlet from the rear
Yes

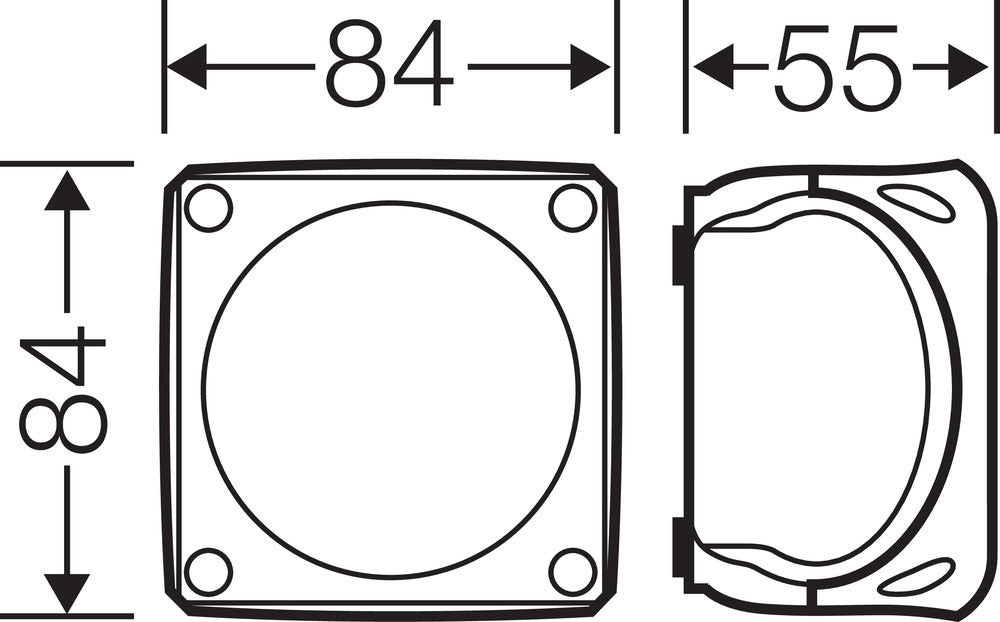

Length
84 mm
Widthi
84 mm
Depthi
55 mm
Tackable
No
Number of inlets
8
Type of housing feed-through
Seal membrane
Materiali
Plastic
Halogen free
Yes
Surface protectioni
Untreated
Colori
Grey
Degree of protection (IP)i
IP66
Cover model
Blind cover
Transparent cover
No
