Hensel MI EM 02 DIN-Rail 284mm Terminal Set - Mi EM 02

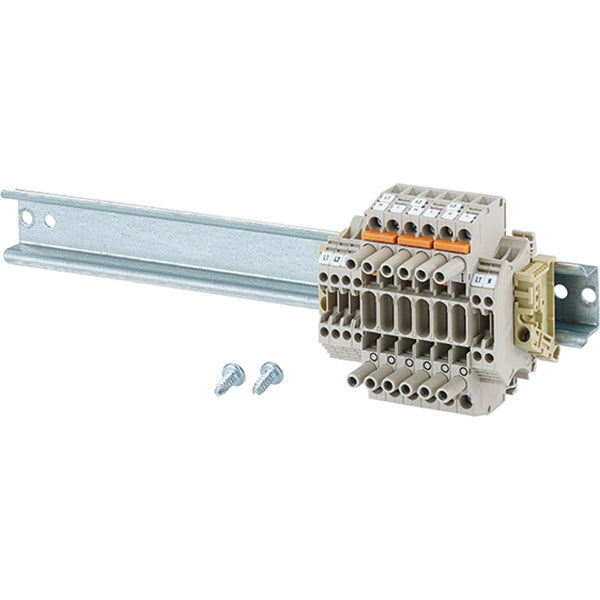

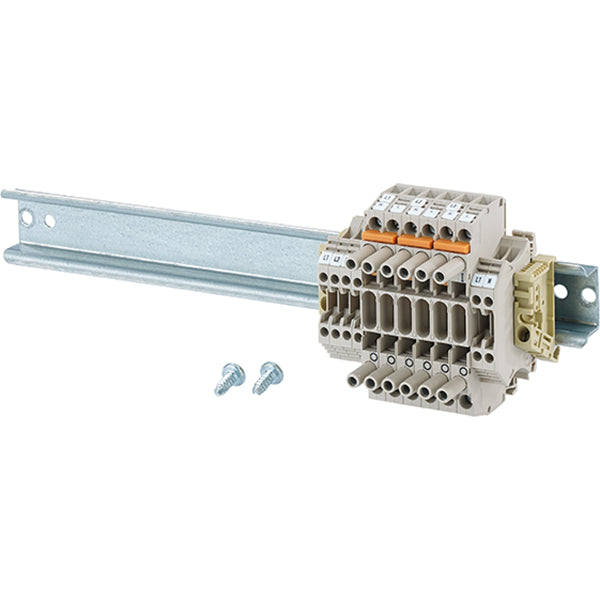

The Hensel separating terminal block is beige, with dimensions of 7.9x284x72mm. Its electrical connection design features a screw connection. It can accommodate conductor cross-sections larger than 1.5 - 4mm², standard wires of 0.5 - 4mm² and fine wires of 0.5 - 2.5mm². It fits onto a 35mm DIN rail. The low-voltage, insulated switchgear combination is housed in a case designed to IEC 61439-2 standards for wall-mounting. The case, suitable for outdoor use, is made of impact-resistant polycarbonate, halogen-free and silicone-free, in RAL 7035 color. The transparent cover features quick closures for tool operation. It conforms to DIN VDE 0471 Part 2 glow-wire test at 960°C, with a maximum water absorption of 10 mg per DIN 53473. It is double-insulated (protection class II). It is part of the HENSEL Mi-distributor series and has an expansion module with measuring separation terminals Mi EM 02, measuring separation terminals 6 mm², and terminal blocks 2,5 mm².
- Regular price
- £138.55
Description
The Hensel separating terminal block is beige, with dimensions of 7.9x284x72mm. Its electrical connection design features a screw connection. It can accommodate conductor cross-sections larger than 1.5 - 4mm², standard wires of 0.5 - 4mm² and fine wires of 0.5 - 2.5mm². It fits onto a 35mm DIN rail. The low-voltage, insulated switchgear combination is housed in a case designed to IEC 61439-2 standards for wall-mounting. The case, suitable for outdoor use, is made of impact-resistant polycarbonate, halogen-free and silicone-free, in RAL 7035 color. The transparent cover features quick closures for tool operation. It conforms to DIN VDE 0471 Part 2 glow-wire test at 960°C, with a maximum water absorption of 10 mg per DIN 53473. It is double-insulated (protection class II). It is part of the HENSEL Mi-distributor series and has an expansion module with measuring separation terminals Mi EM 02, measuring separation terminals 6 mm², and terminal blocks 2,5 mm².
