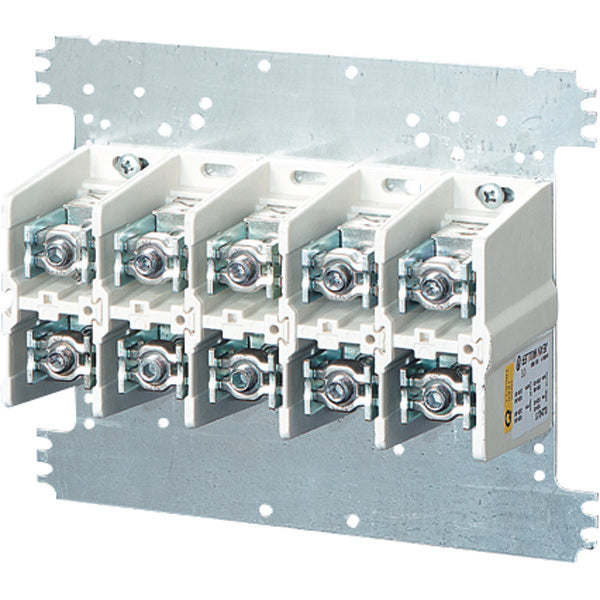

Hensel MI VE 245 Power Terminal 400A 25-240mm CU/ALU 5 Gear - Mi VE 245
The Hensel Mi-distributor terminal block is grey with five poles and has electric connection via a screw connection, possessing four clamp positions per pole. The block offers a directly connectable conductor cross-section of 25 - 185mm². The block comes with an insulated low voltage switchgear combination encased in a box-shaped build, according to IEC 61439-2, suitable for wall installation and exterior placement considering weather conditions. Box parts and lid are made from impact-resistant polycarbonate, free of halogen and silicone, and are colored RAL 7035. It features a transparent lid equipped with quick release fasteners for tool operation. The fire behavior is in accordance with DIN VDE 0471 Part 2 –(Glow-wire test 960 °C), and the maximum water absorption is 10 mg as per DIN 53473. As a safety measure, it is double insulated (Protection Class II). The product package includes a Mi VE 245 feed-through terminal that can cover 240 mm² and has five-poles, built on a 300x300 mm installation plate.
- Regular price
- £448.23
Description
The Hensel Mi-distributor terminal block is grey with five poles and has electric connection via a screw connection, possessing four clamp positions per pole. The block offers a directly connectable conductor cross-section of 25 - 185mm². The block comes with an insulated low voltage switchgear combination encased in a box-shaped build, according to IEC 61439-2, suitable for wall installation and exterior placement considering weather conditions. Box parts and lid are made from impact-resistant polycarbonate, free of halogen and silicone, and are colored RAL 7035. It features a transparent lid equipped with quick release fasteners for tool operation. The fire behavior is in accordance with DIN VDE 0471 Part 2 –(Glow-wire test 960 °C), and the maximum water absorption is 10 mg as per DIN 53473. As a safety measure, it is double insulated (Protection Class II). The product package includes a Mi VE 245 feed-through terminal that can cover 240 mm² and has five-poles, built on a 300x300 mm installation plate.
