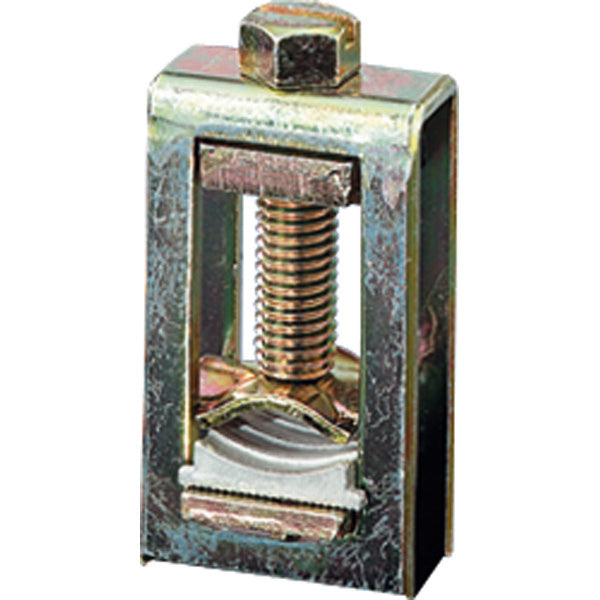

Hensel Rail Connection Clamp 35-150mm Cu 5mm - KS 150
The Hensel Mi-distributors connecting terminal has a maximum current load of 630A, designed specifically for current rails of thickness between 5mm and 10mm and width of 12mm. It can accommodate one conducting wire, with the width of the clamp being 34mm. The terminal is compatible for connecting band conductors, round conductors, and sector conductors, with maximum conductor cross-section capacity of 150mm². The terminal also offers direct connection for 5mm and 10mm copper rail systems, compatible with copper lines ranging from 35-150 mm², including flexible rail copper VS 630 systems.
- Regular price
- £14.42
Description
The Hensel Mi-distributors connecting terminal has a maximum current load of 630A, designed specifically for current rails of thickness between 5mm and 10mm and width of 12mm. It can accommodate one conducting wire, with the width of the clamp being 34mm. The terminal is compatible for connecting band conductors, round conductors, and sector conductors, with maximum conductor cross-section capacity of 150mm². The terminal also offers direct connection for 5mm and 10mm copper rail systems, compatible with copper lines ranging from 35-150 mm², including flexible rail copper VS 630 systems.
