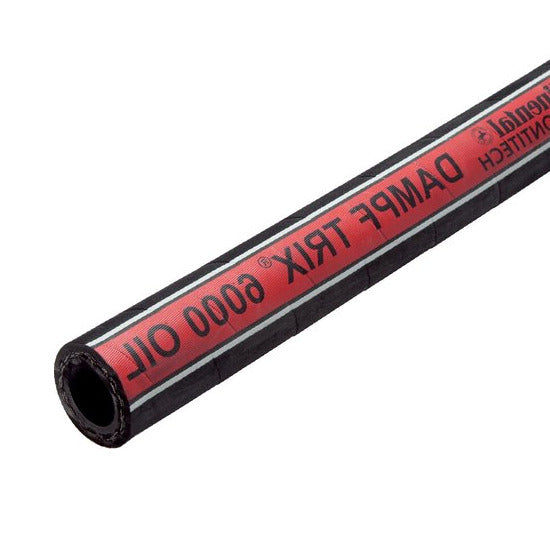

DAMPF TRIX 6000 OIL steam hose 32 mm (ID) 10 m (Oil resistant)

High-temperature resistant premium 32 mm (internal diameter) DAMPF TRIX 6000 OIL steam hose from Continental. It is made of extremely heat resistant EPDM and has a maximum saturated steam working temperature and pressure of 210 °C and 18 bar. It has a minimum bend radius of 320 mm. The outer hose layer is resistant to oil. It is suitable for transporting steam in the most extreme working conditions in the chemical, petrochemical and construction industries. The EPDM is reinforced with 2 steel wire braids giving the hose excellent resistance to abrasion. The outer EPDM layer is perforated to ensure no cover bubbles or blisters form. Steam exists in different states, wet saturated steam, dry saturated steam and superheated steam, dependent on the operating pressure and temperature. Superheated steam can damage steam hoses, therefore please look at our technical articles for more information on the relation between operating pressure, temperature and steam. This hose is sold at a pre-cut length of 10 m, we also offer rolls with a length of 40 m. Hose conforms to DIN EN ISO 6134-2 B standard.

Pros:

• Premium Continental quality
• Suitable for both water and steam due to the high temperature range (0 °C to 210 °C)
• The outer EPDM layer is perforated to ensure no cover bubbles or blisters form
• UV, ozone, oil, weather and abrasion resistant
• Hose conforms to DIN EN ISO 6134-2 B standard

Series

The DAMPF-TRIX 6000 OIL series are high-quality premium steam hoses available in sizes from 13-50 mm inside diameter. The hoses are insensitive to ozone, weathering and UV radiation and are abrasion-resistant. The hoses are available in pre-cut lengths of 1, 3 and 10 meters or as a 40-meter roll.
