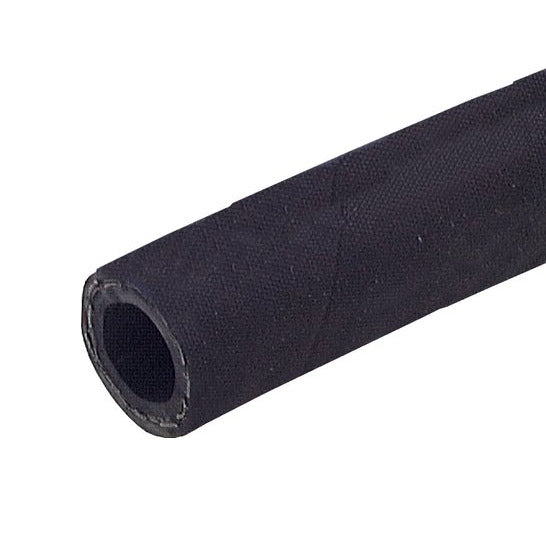

1SN hydraulic hose 12.7 mm (ID) 160 bar (OP) 25 m Black

1SN hydraulic hose 12.7 mm (ID) 160 bar (OP) 25 m Black
Reference: HL-R-BLA-1SN-12p7x20p1-25
Brand: Tameson

High quality 12.7 mm 1SN hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 1SN standard. It is made of Rubber and has 1 steel inlay(s). Note: Sold at a pre-cut length of 25 meter and cannot be returned!

View all
Note: product cannot be returned
Regular price
£554.06
excl VAT

In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Description
Specifications
Downloads
Related products

High quality 12.7 mm 1SN hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 1SN standard. It is made of Rubber and has 1 steel inlay(s). The temperature range is -40 °C – 100 °C. The hose has an operating pressure of 160 bar and bursting pressure of 680 bar. Due to the high quality rubber material the hose is ozone, weather and abrasion resistant and offers excellent usability in the mining, construction and machine building industries. The standardized nominal diameter of the hose is DN 12. This hose is sold at a pre-cut length of 25 m. Hose conforms to EN 853 & SAE 100 R4 standard(s). (Due to the manufacturing process we cannot exclude that the hose will be supplied in pieces. We attempt to deliver a maximum of 3 pieces, where none of the pieces is shorter than 3 meters)

Pros:

  • Ozone, weather and abrasion resistant
  • Large temperature range (-40 °C – 100 °C)
  • Very high bursting pressure (680 bar)
  • Hose conforms to EN 853 & SAE 100 R4 standard(s)

Cons:

  • Without couplings

HL-R-1SN series

The HL-R-1SN hoses are high-quality hydraulic hoses suitable for the mining, construction and machine building industries. The hoses are made of rubber with has 1 steel inlay(s). Due to the high quality rubber material the hoses are ozone, weather and abrasion resistant. The hoses are available in pre-cut lengths of 1, 3, 10 and 25 meters.
